<35dB
IP66

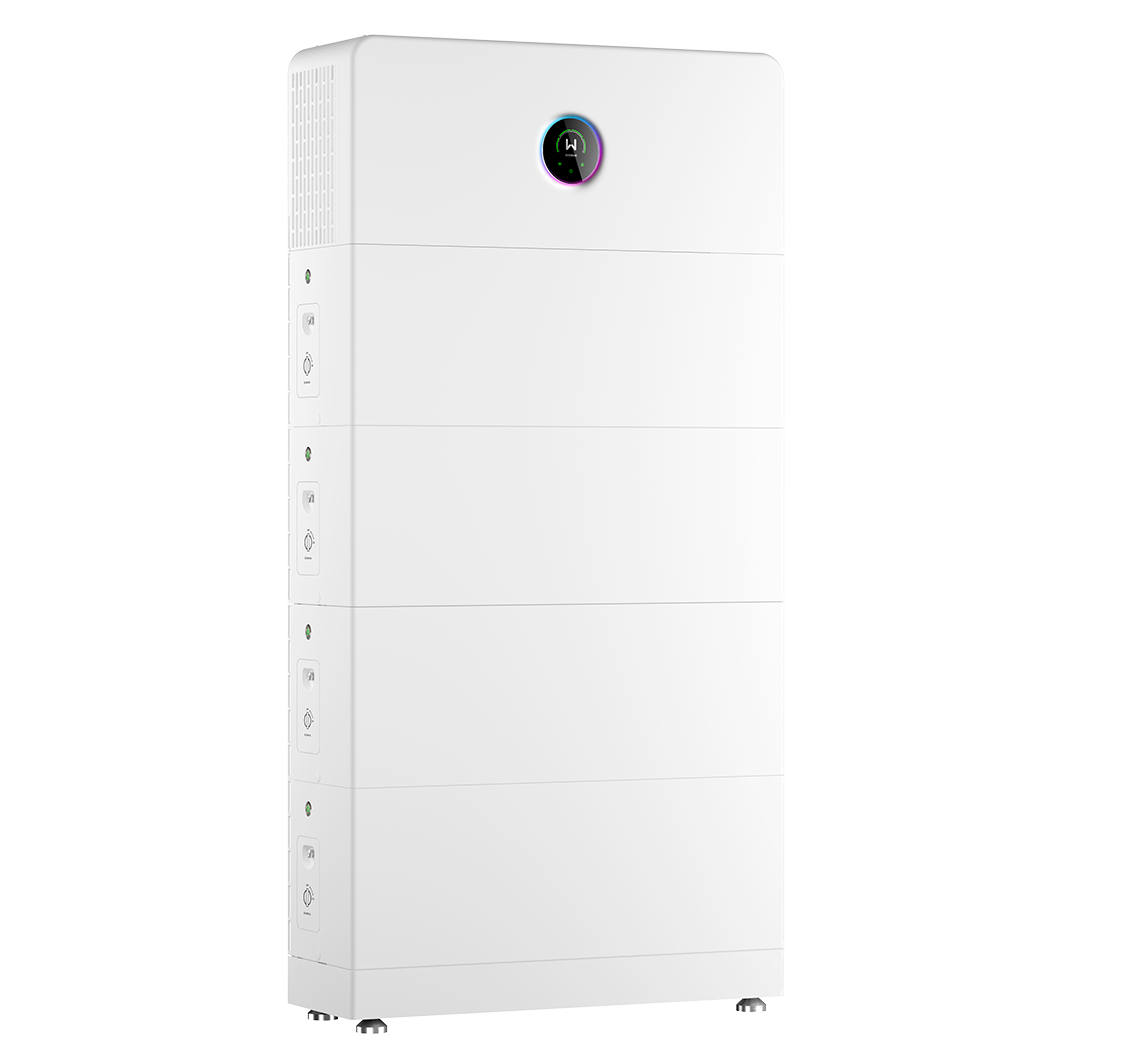

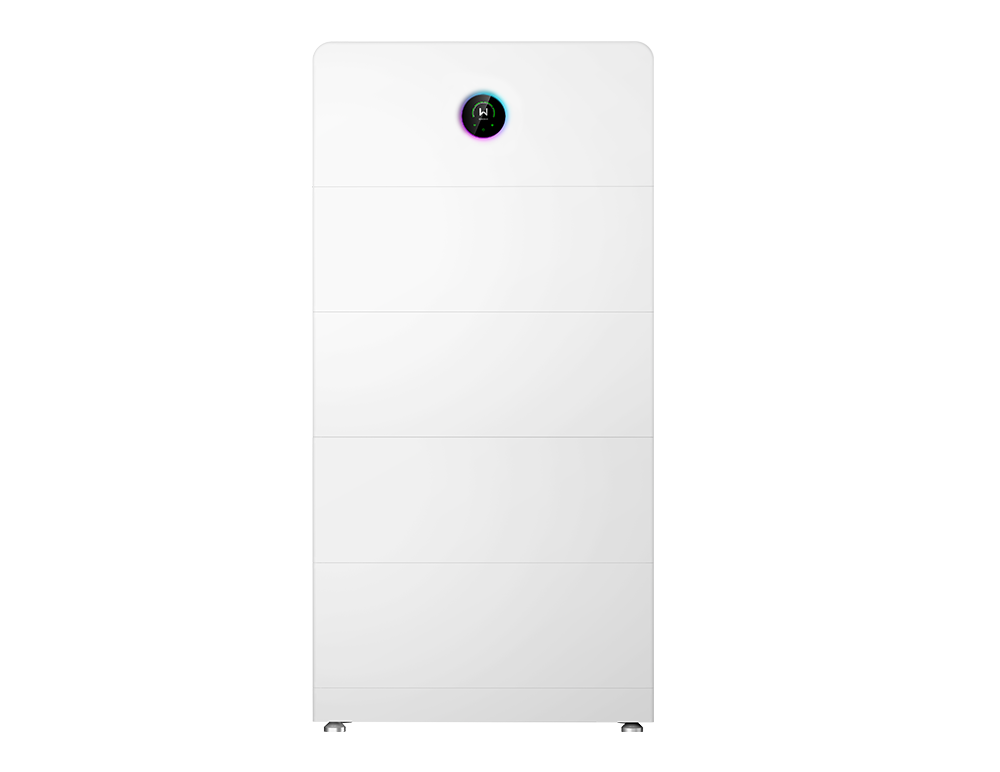

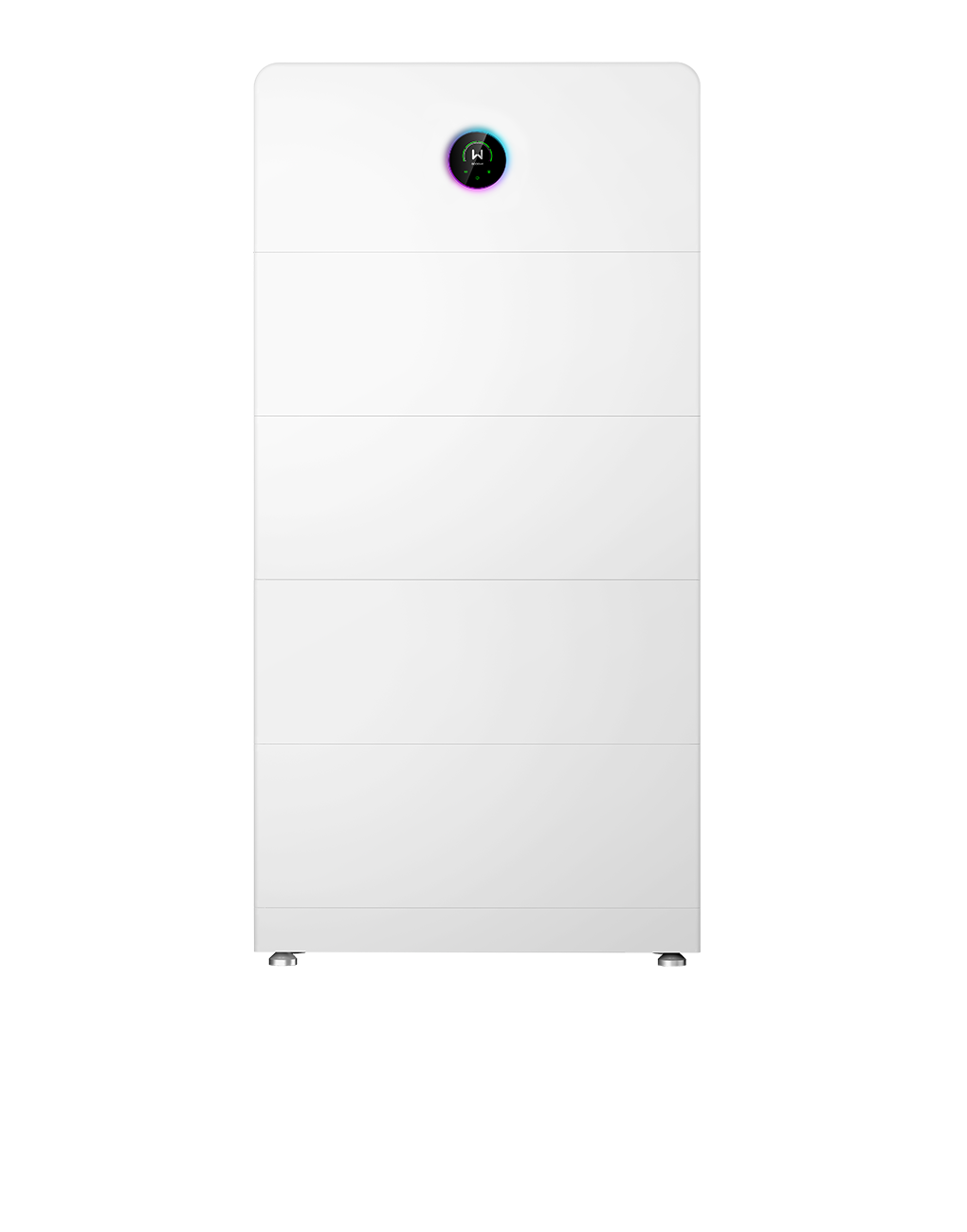

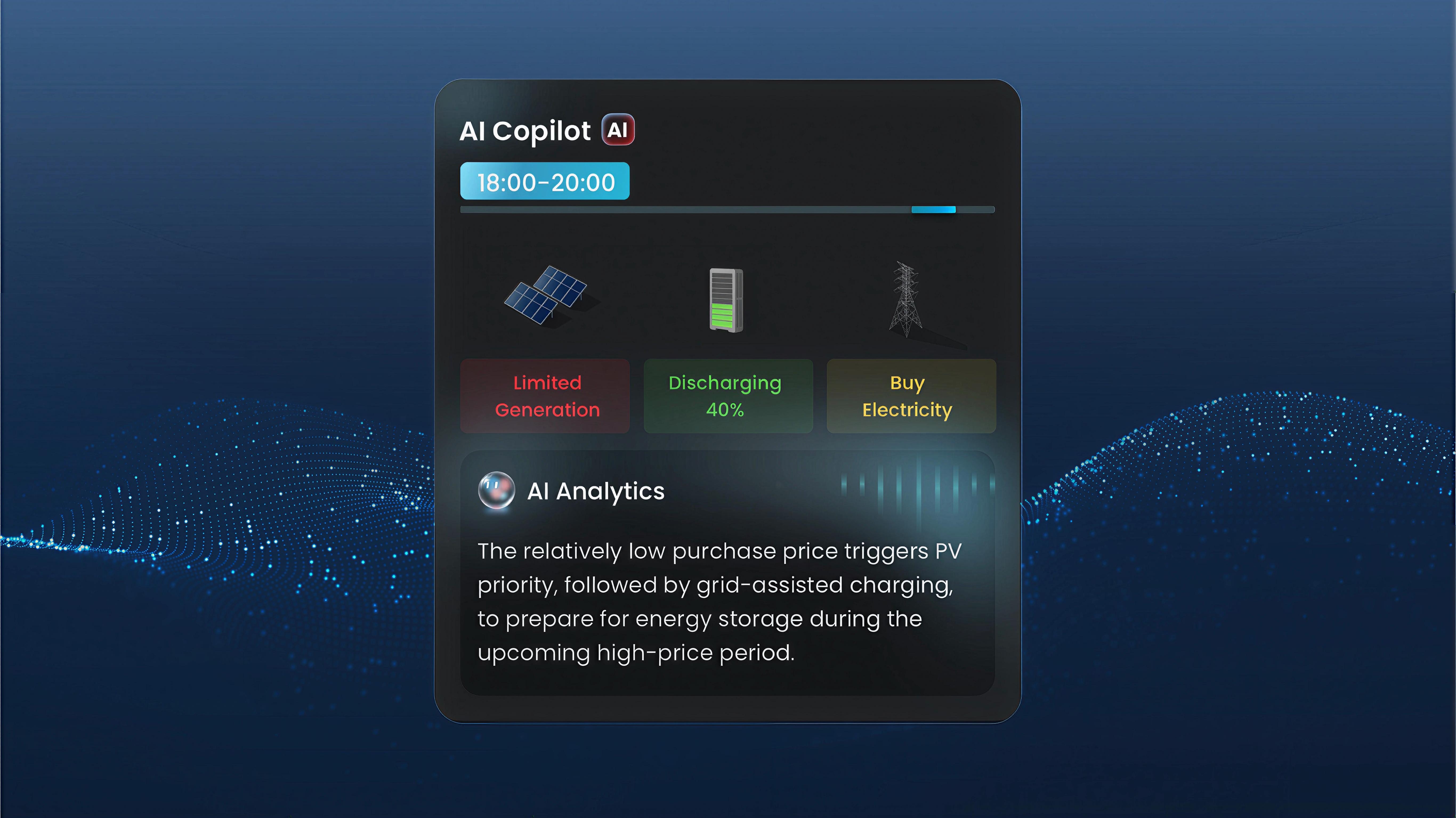

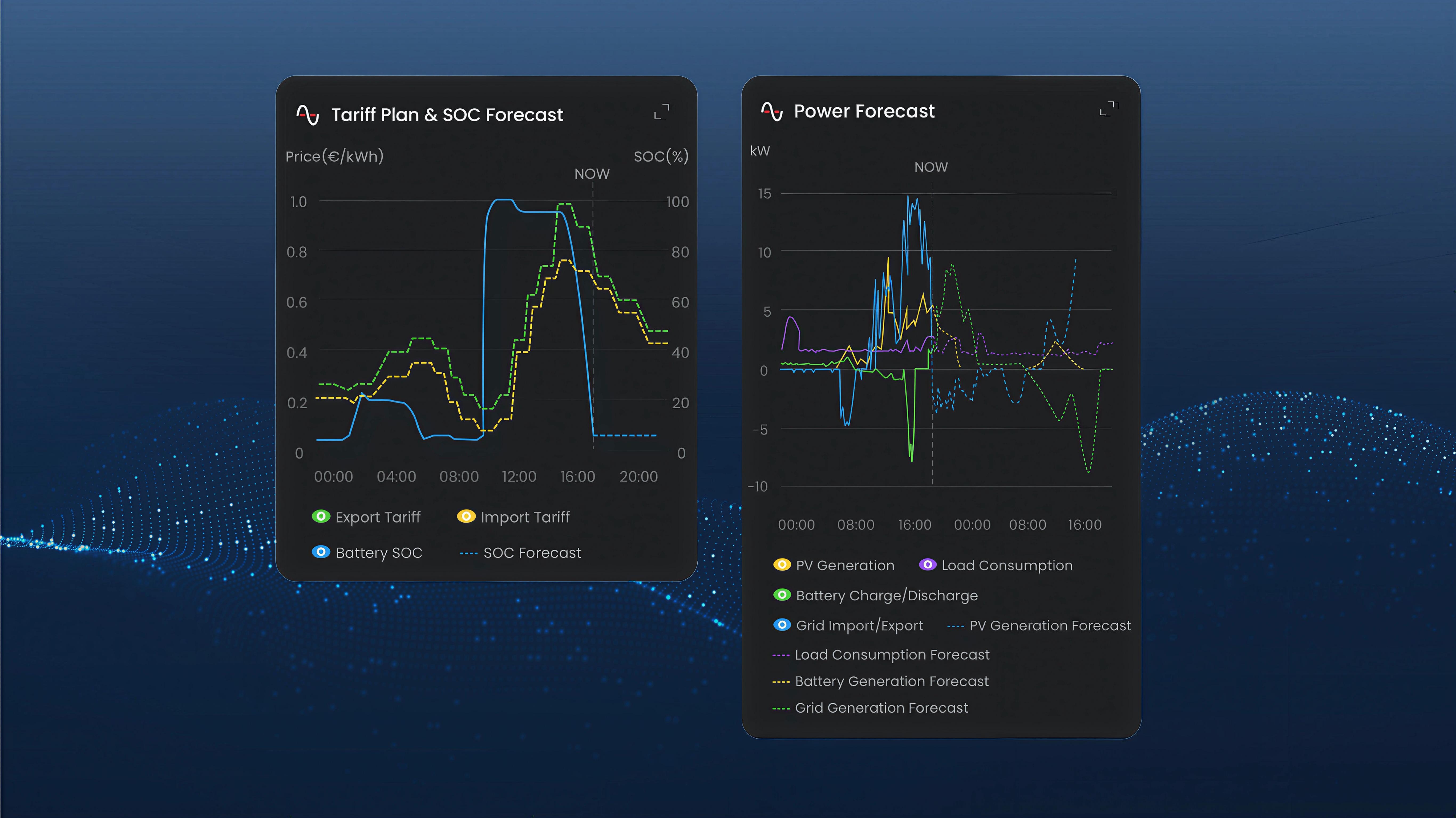

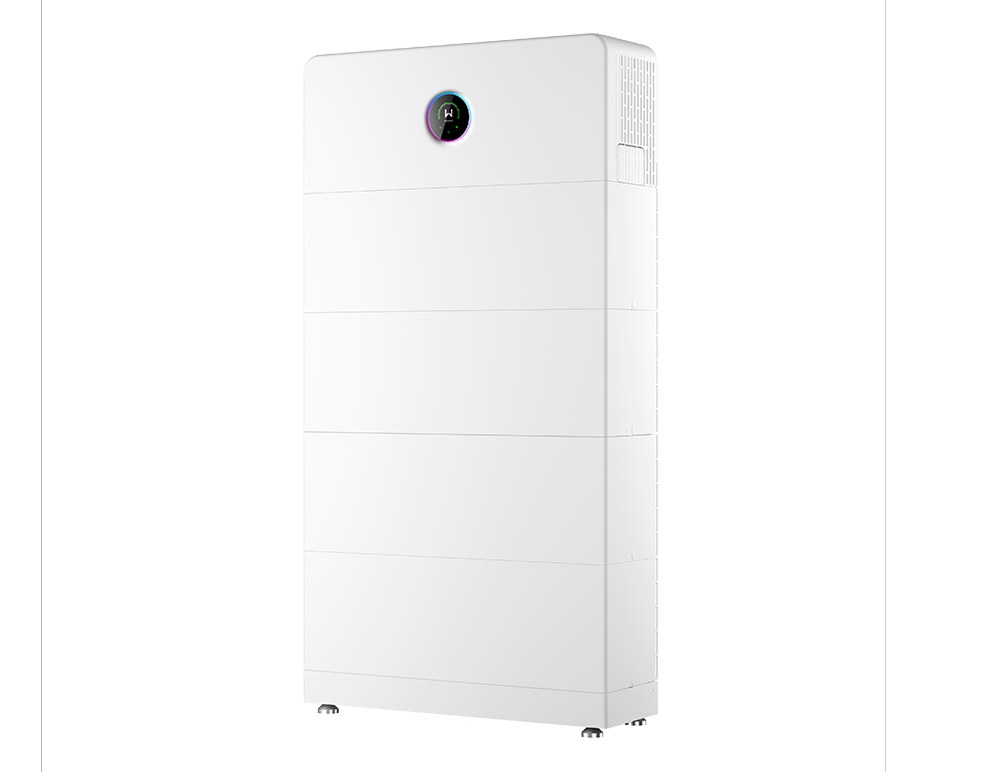

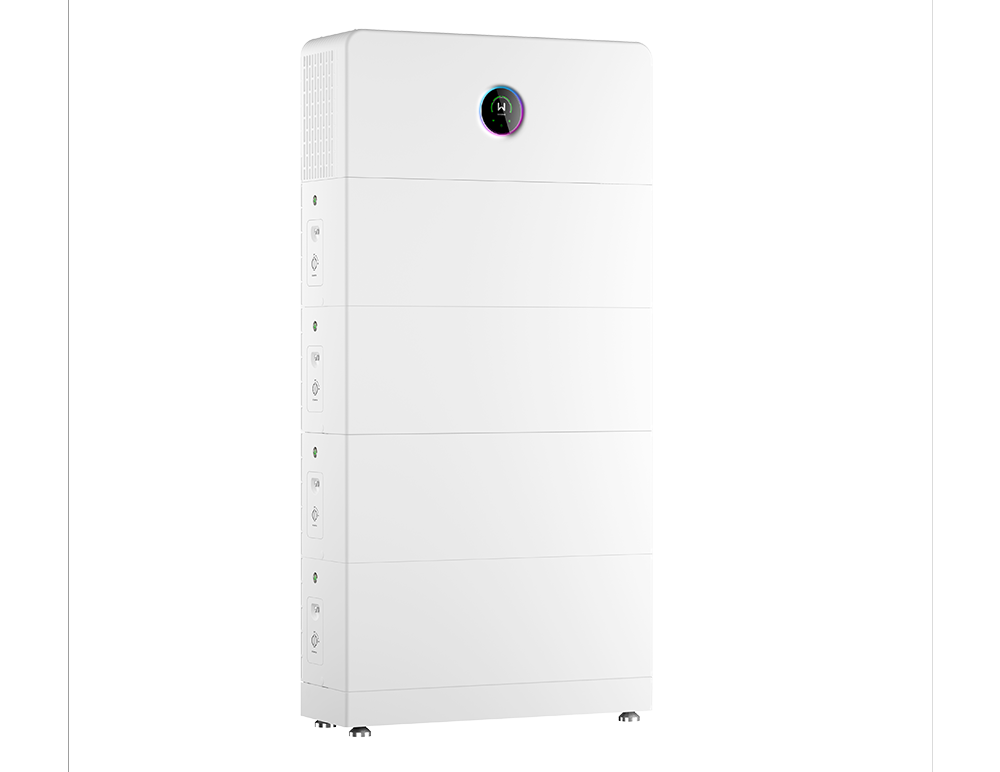

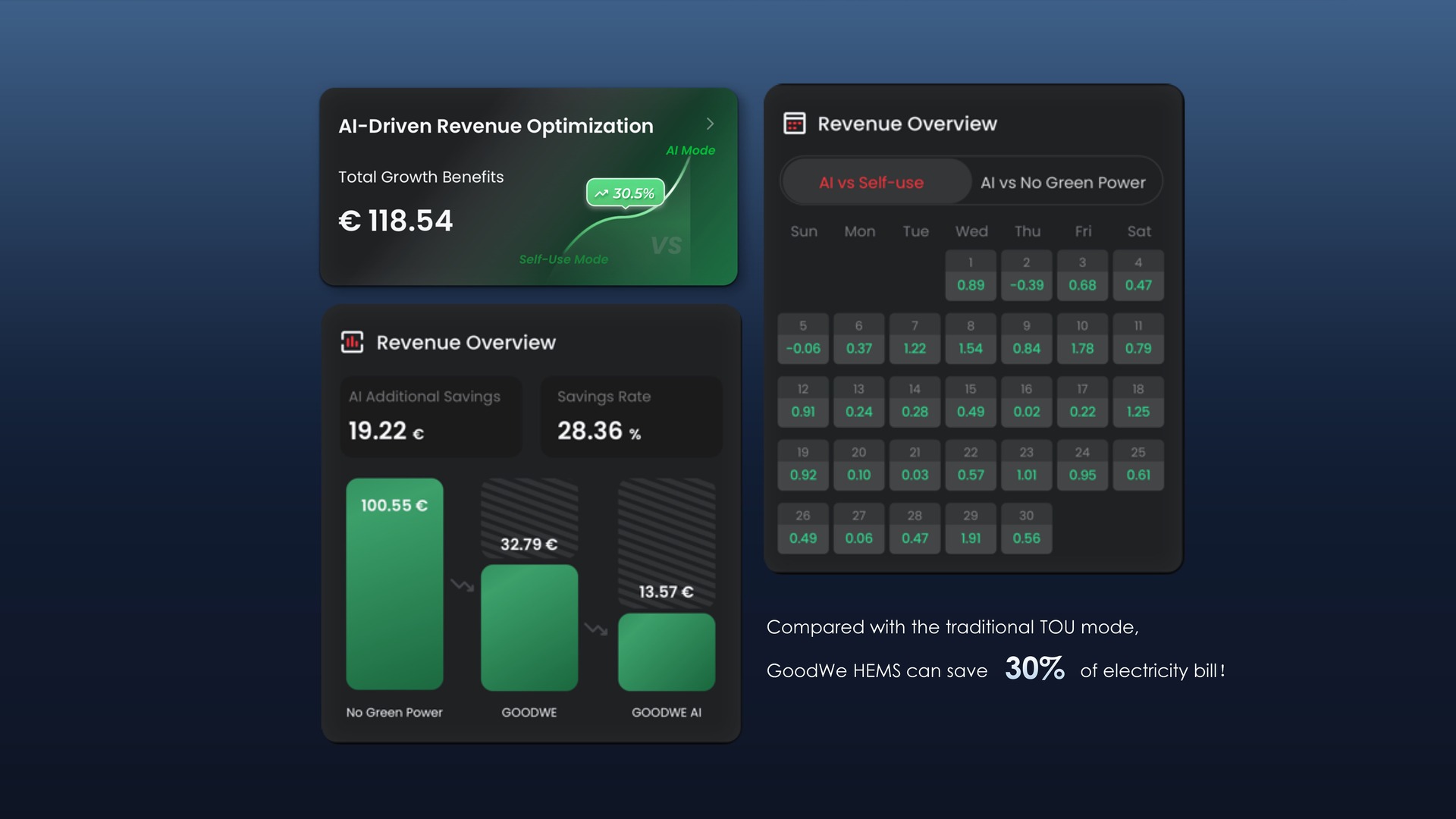

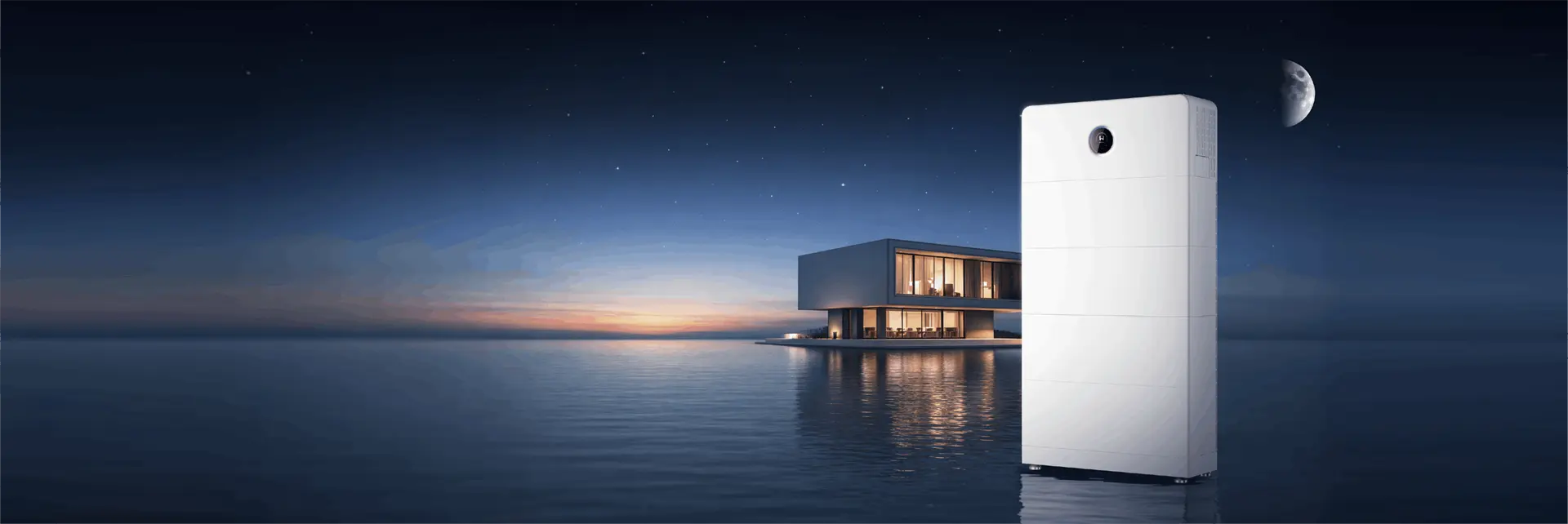

The GoodWe ESA Series 5–30kW/5–108kWh is a three-phase All-in-One ESS that integrates the inverter, battery, and intelligent energy management into a single system. Its pre-wired, modular design unifies the inverter and battery, delivering an installation-friendly structure that streamlines setup and accelerates commissioning. With four battery module options—5, 6, 8, and 9 kWh—up to 12 modules can be connected for a total storage capacity of 108 kWh. Featuring simplified configuration, large expandable storage, and an AI-driven EMS for dynamic tariff optimization, the ESA Series 5–30kW/5–108kWh provides an efficient, flexible, and future-ready solution for both residential and small commercial use.

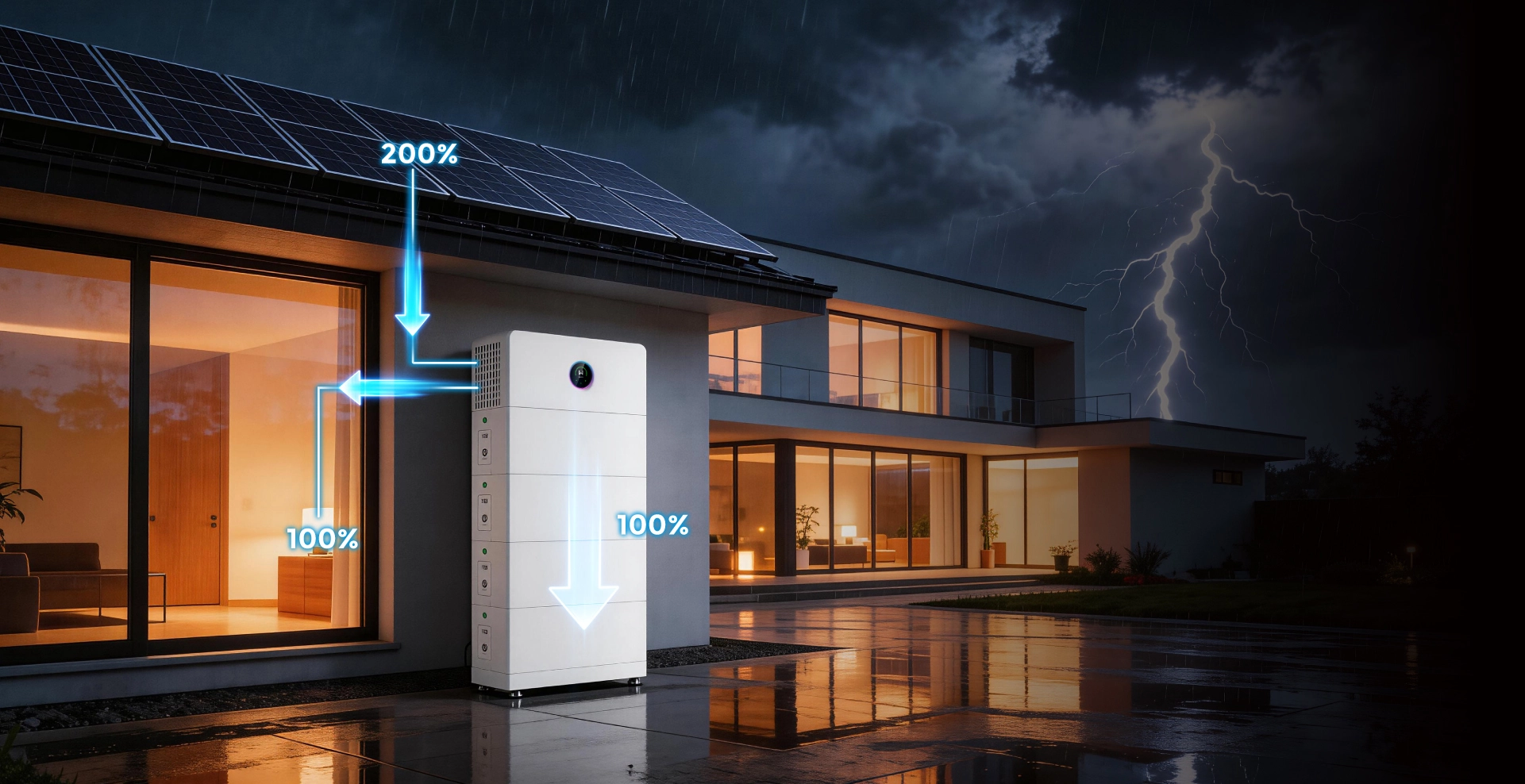

Up to 200% DC oversizing & AC backup overload
Flexible battery mixing with different capacity or old&new batteries
.png)
Dual-port design for whole-home backup
Seamless switching to backup < 4ms

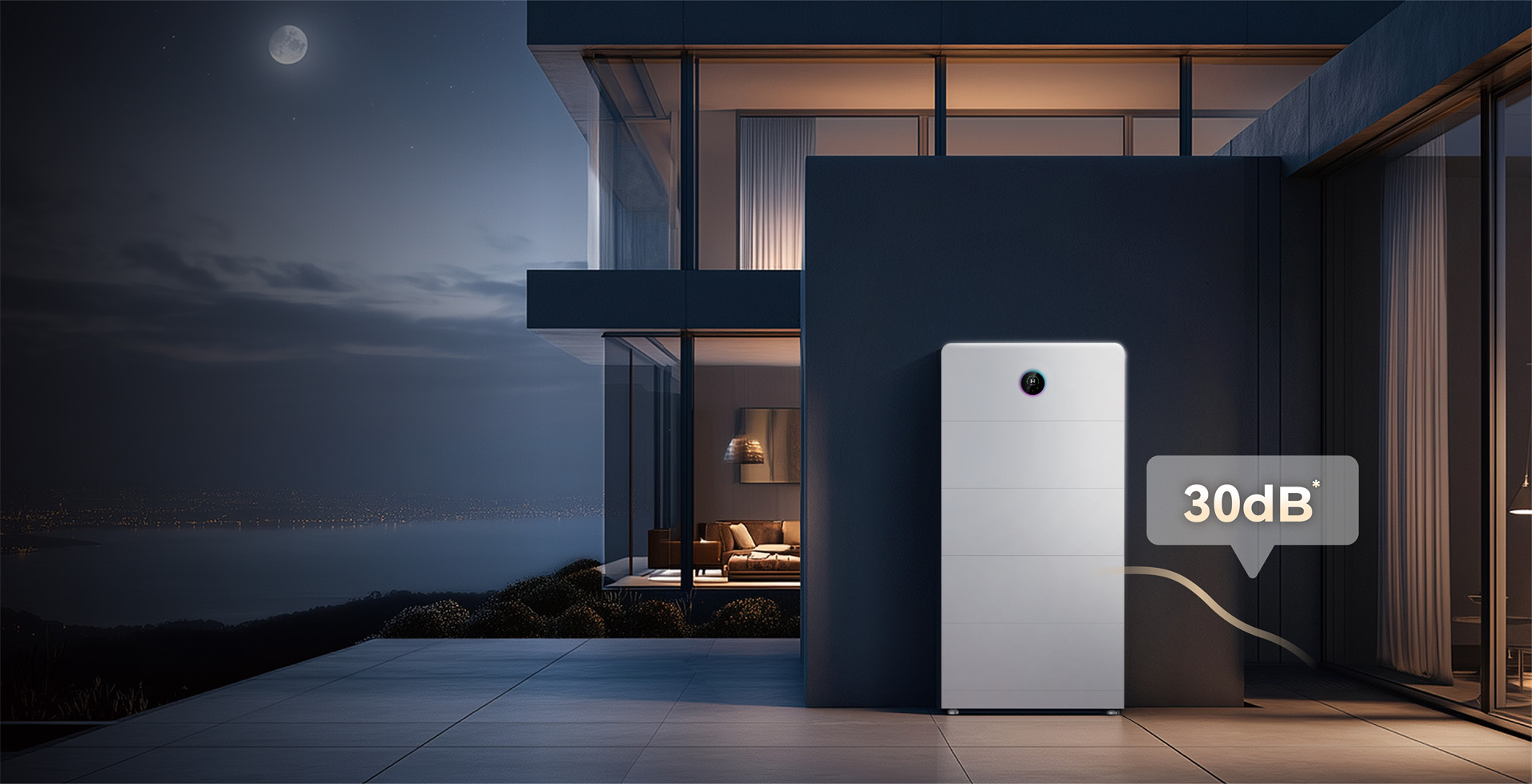

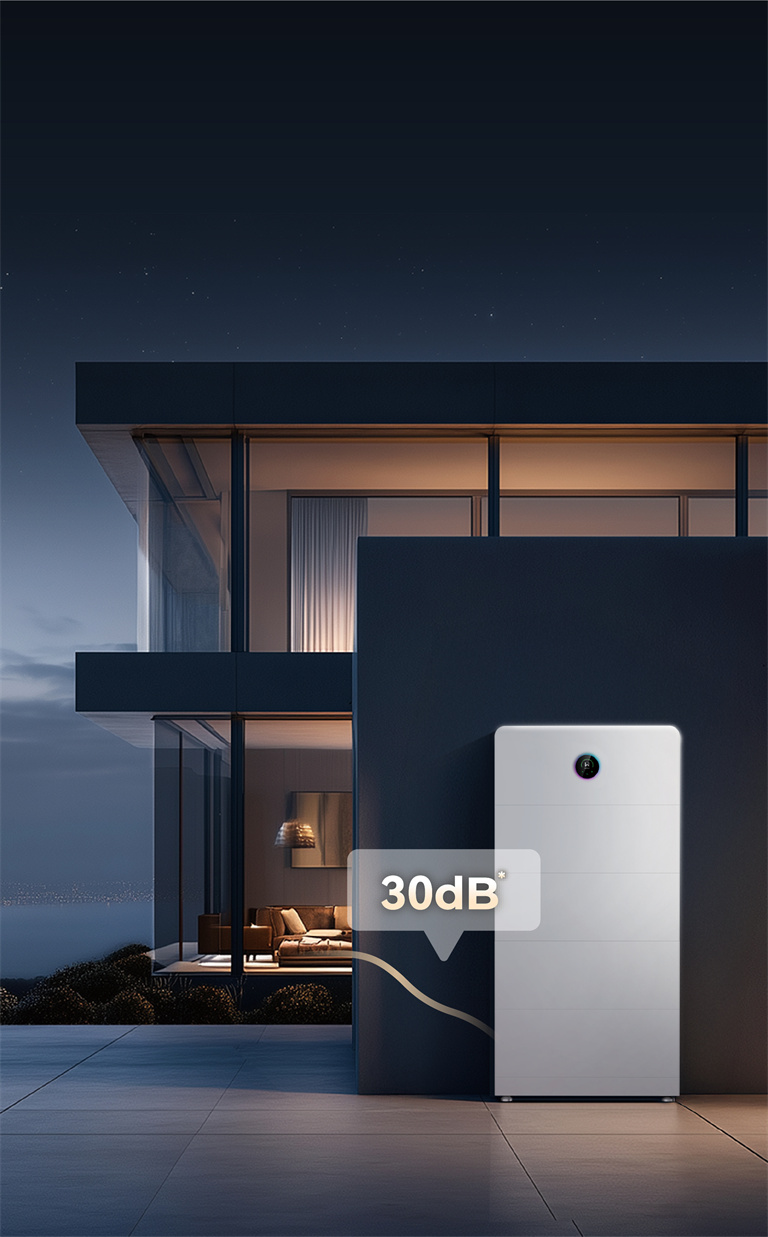

<35dB
IP66
High Efficiency & Superb Safety

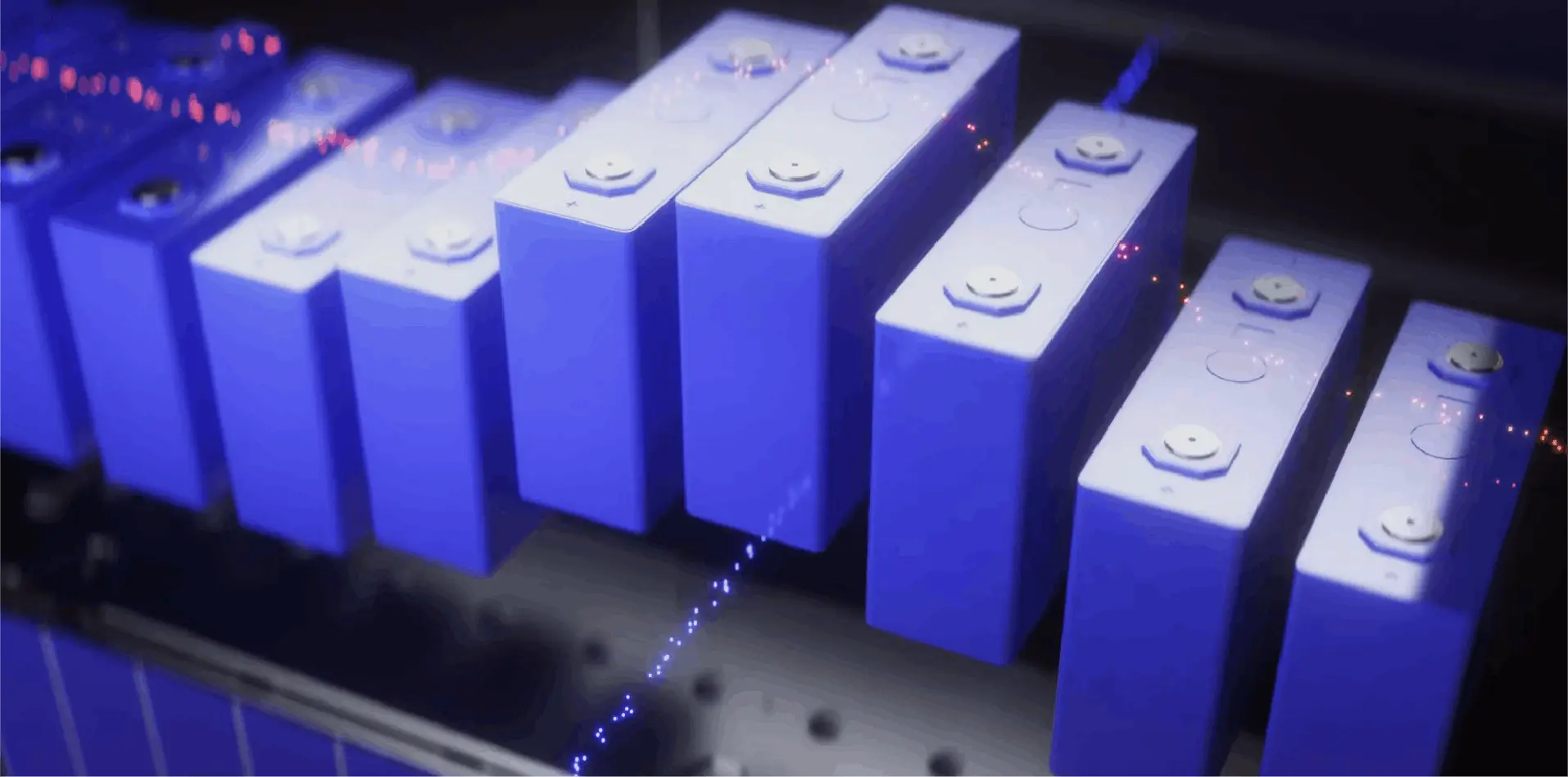

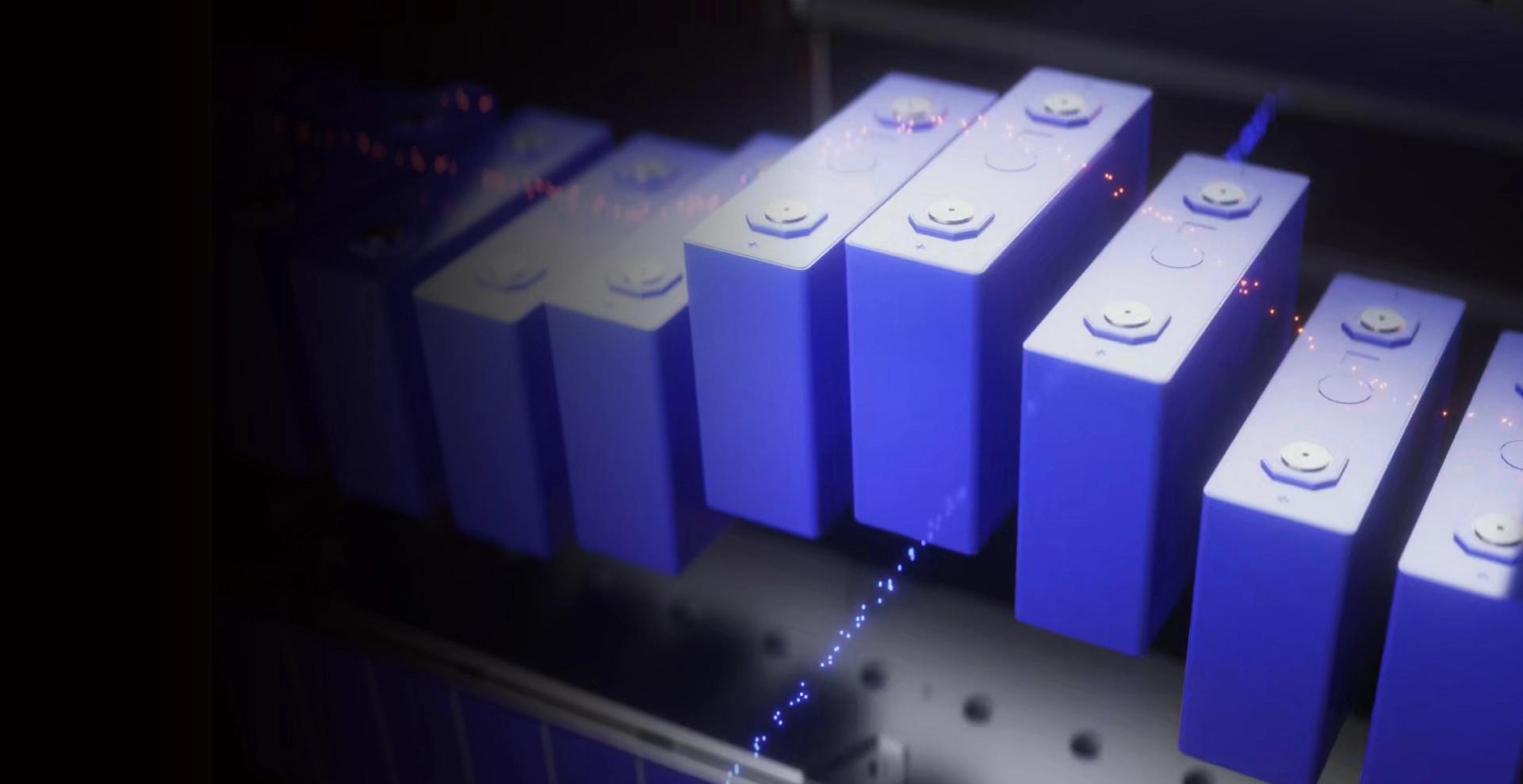

Engineered to maximize efficiency, reliability, and peace of mind for residential and small C&I energy use, the ESA energy storage system, with a 1C charge/discharge, delivers fast response and the same power output with fewer batteries—shortening payback time—while six-layer protection from cell to system level ensures safe, stable, and worry-free power for everyday use.

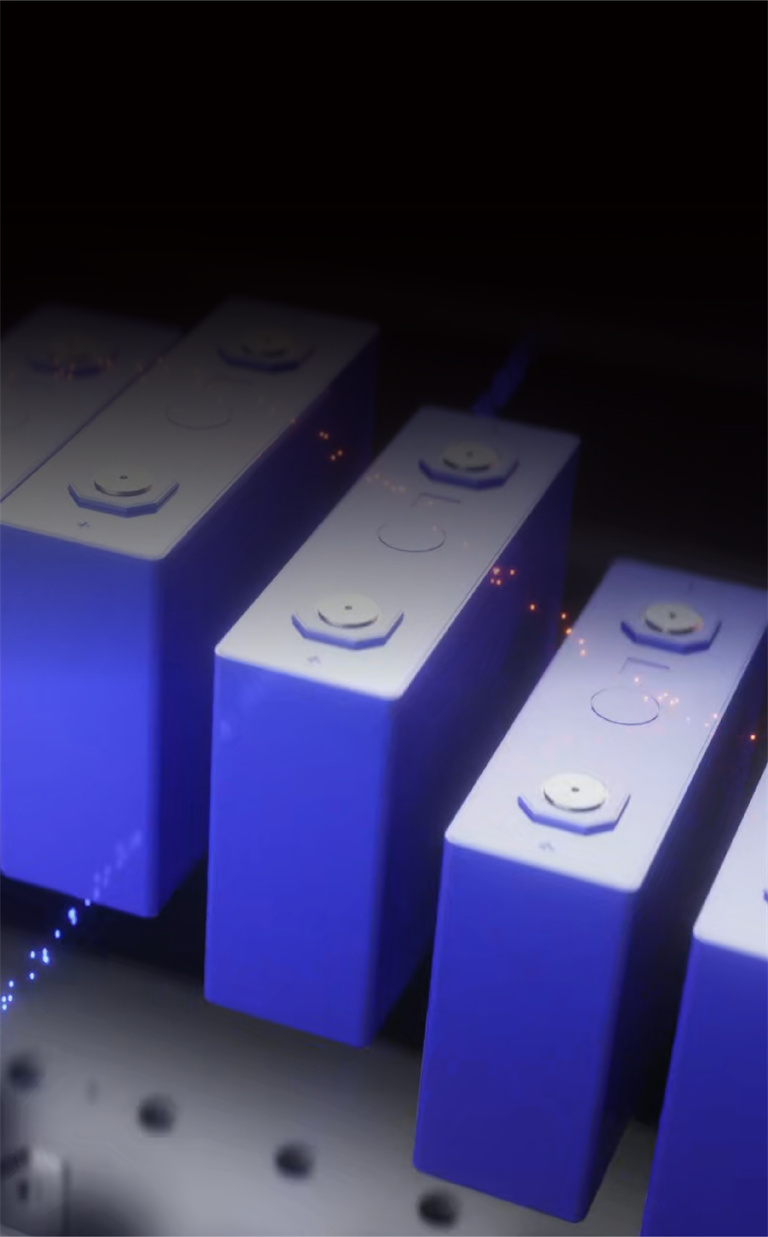

Up to 1C charge/discharge for rapid energy cycling

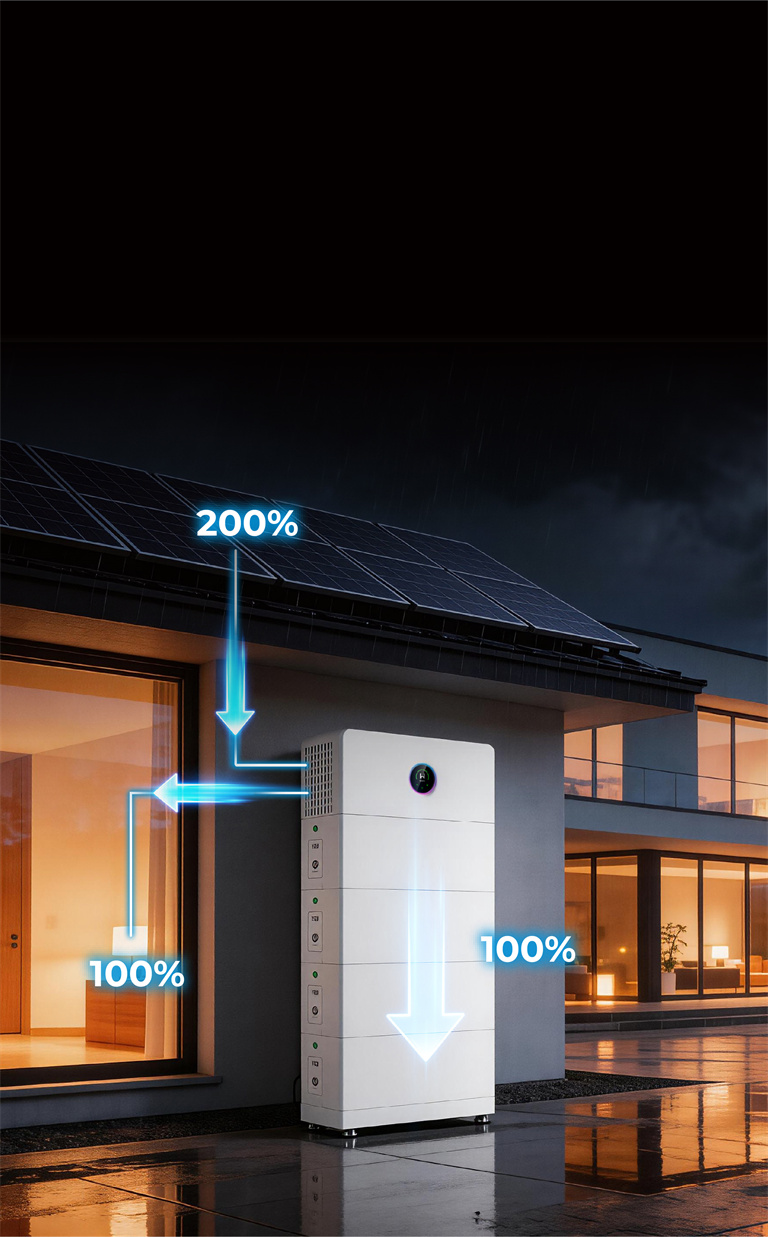

Up to 200% DC oversizing & AC backup overload
Heating mode ensures reliable performance even in -20℃

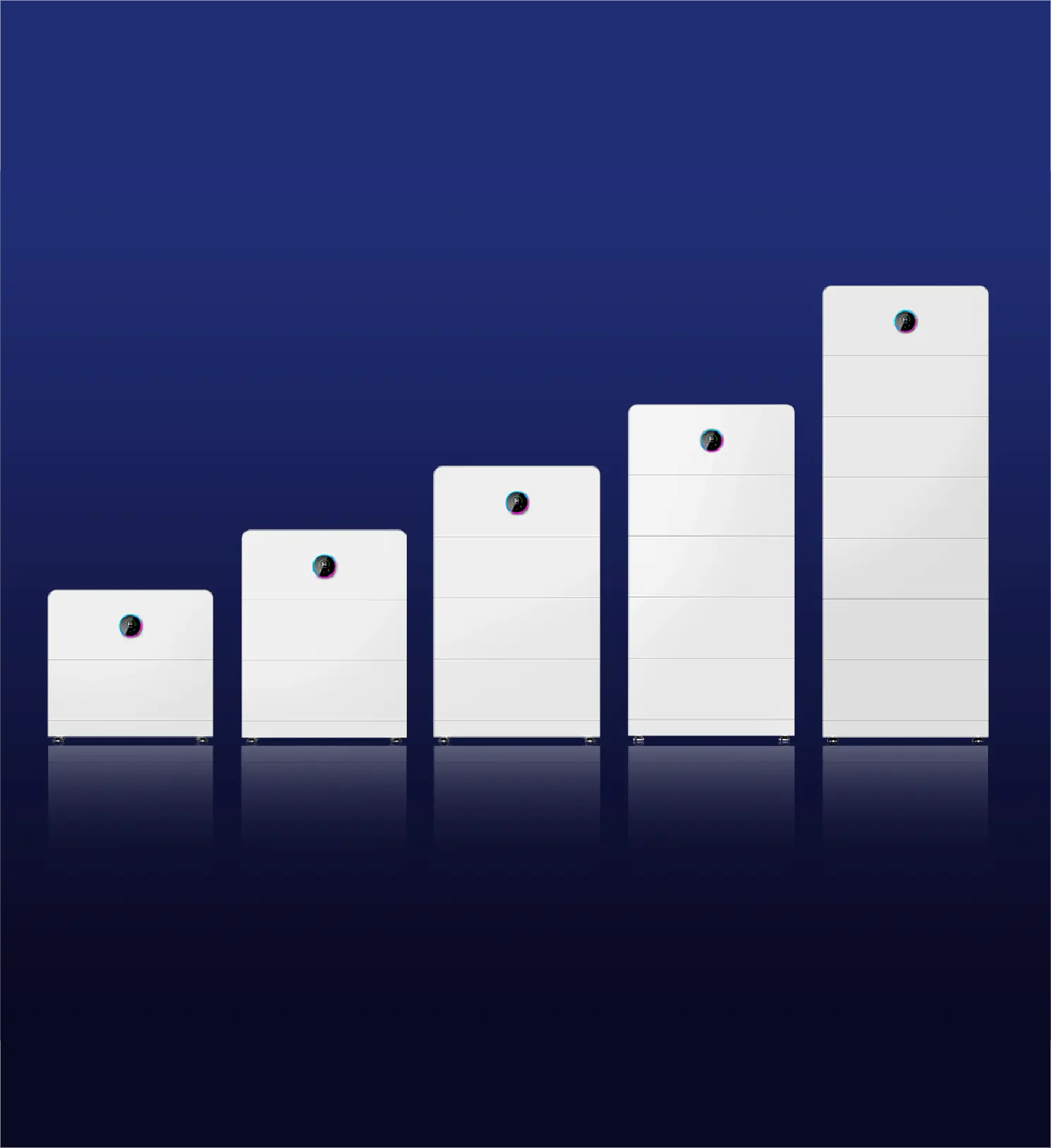

Flexible Expansion. Versatile Applications

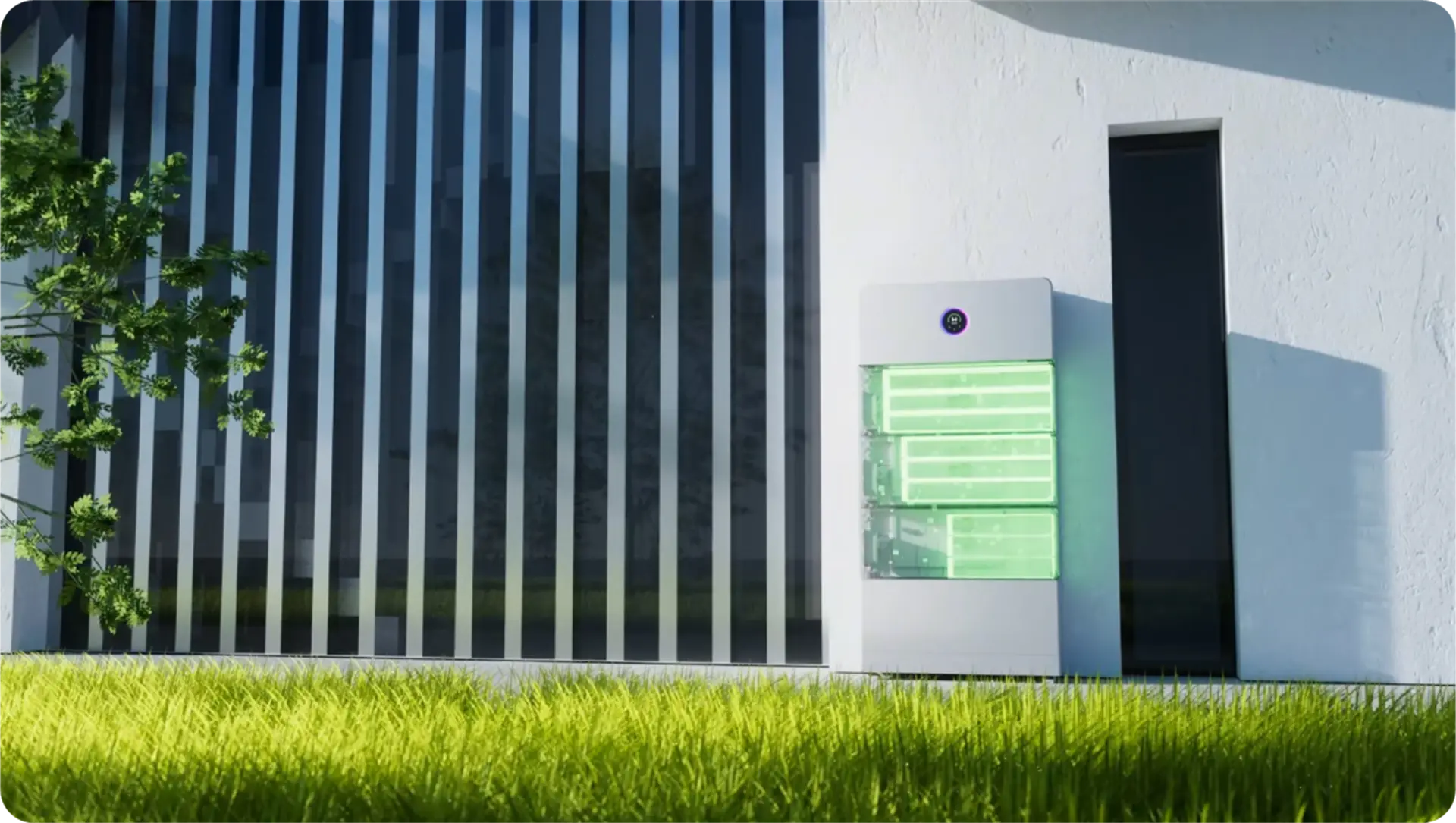

The ESA energy storage system is built to grow with changing energy demands and adapt seamlessly to different use scenarios. Its flexible battery compatibility enables easy system expansion or upgrades, while robust backup capability ensures reliable power for a wide range of residential and small commercial applications—even under demanding conditions.
Flexible battery mixing with different capacity or old&new batteries
Dual-port design for whole-home backup
Seamless switching to backup < 4ms
OVERVIEW
Model
GW30K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
40.0 / 44.1
Max. Input Current per MPPT (A)
21 / 21 / 42 / 42
Max. Apparent Power to Grid (kVA)
30
Back-up Nominal Apparent Power (kVA)
30
Model
GW29.999K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
40.0 / 44.1
Max. Input Current per MPPT (A)
21 / 21 / 42 / 42
Max. Apparent Power to Grid (kVA)
29.999
Back-up Nominal Apparent Power (kVA)
30
Model
GW25K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
33.3 / 36.7
Max. Input Current per MPPT (A)
21 / 21 / 42 / 42
Max. Apparent Power to Grid (kVA)
25
Back-up Nominal Apparent Power (kVA)
25
Model
GW20K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
26.7 / 29.4
Max. Input Current per MPPT (A)
21 / 21 / 21 / 21
Max. Apparent Power to Grid (kVA)
20
Back-up Nominal Apparent Power (kVA)
20
Model
GW15K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
20.1 / 22.1
Max. Input Current per MPPT (A)
21 / 21 / 21 / 21
Max. Apparent Power to Grid (kVA)
15
Back-up Nominal Apparent Power (kVA)
15
Model
GW12K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
16.1 / 17.7
Max. Input Current per MPPT (A)
21 / 21 / 21 / 21
Max. Apparent Power to Grid (kVA)
12
Back-up Nominal Apparent Power (kVA)
12
Model
GW10K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
13.4 / 14.7
Max. Input Current per MPPT (A)
21 / 21 / 21 / 21
Max. Apparent Power to Grid (kVA)
10
Back-up Nominal Apparent Power (kVA)
10
Model
GW9.999K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
13.4 / 14.7
Max. Input Current per MPPT (A)
21 / 21 / 21 / 21
Max. Apparent Power to Grid (kVA)
9.999
Back-up Nominal Apparent Power (kVA)
10
Model
GW8K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
10.7 / 11.8
Max. Input Current per MPPT (A)
21 / 21 / 21
Max. Apparent Power to Grid (kVA)
8
Back-up Nominal Apparent Power (kVA)
8
Model
GW6K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
8.1 / 8.9
Max. Input Current per MPPT (A)
21 / 21 / 21
Max. Apparent Power to Grid (kVA)
6
Back-up Nominal Apparent Power (kVA)
6
Model
GW5K-ETA-G20
Battery Voltage Range (V)
700 ~ 950
Max. Continuous Charging / Discharging Current (A)
6.7 / 7.4
Max. Input Current per MPPT (A)
21 / 21 / 21
Max. Apparent Power to Grid (kVA)
5
Back-up Nominal Apparent Power (kVA)
5
