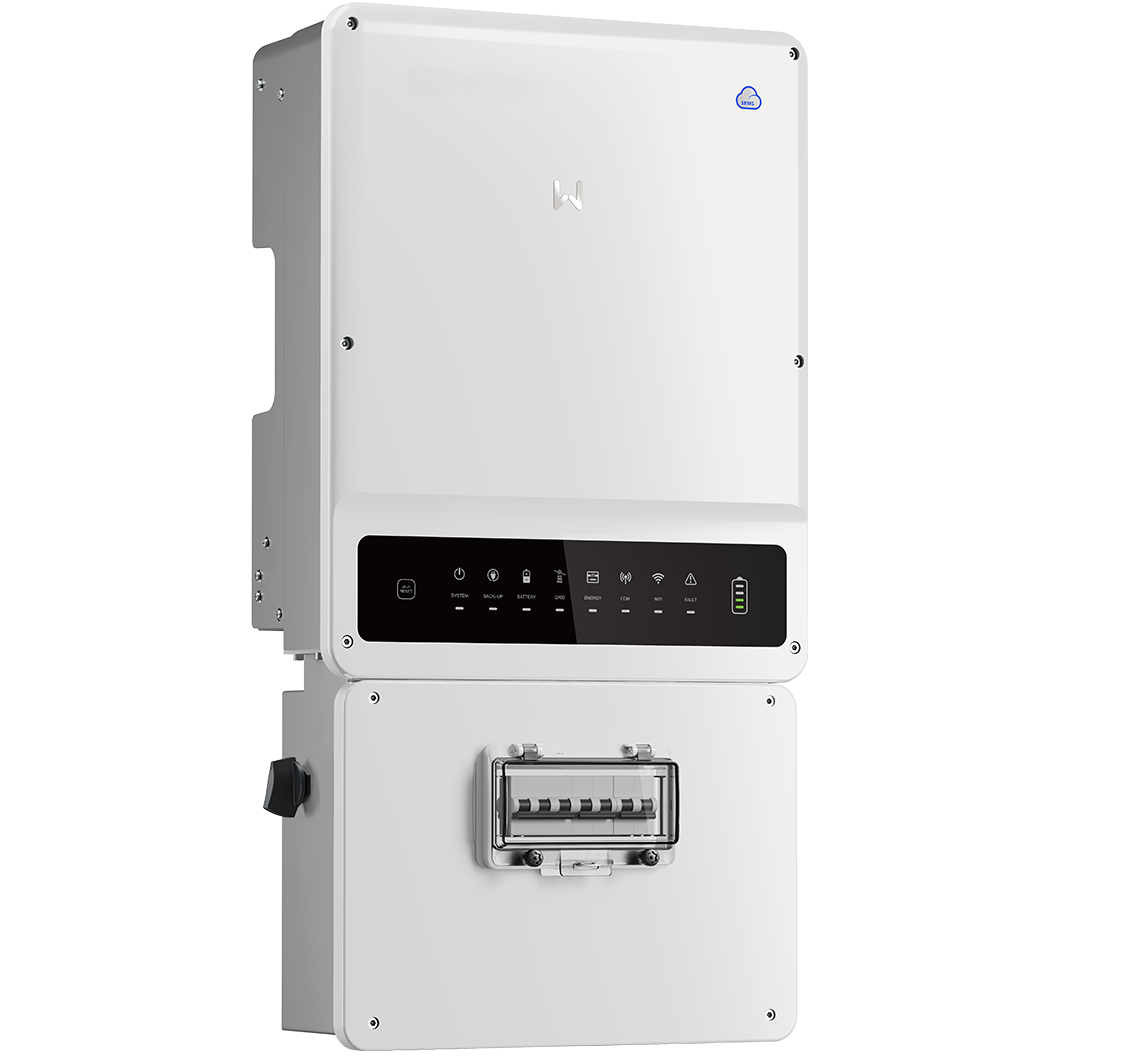

EHB Series
(South Africa only) 5-10kW | Single Phase | up to 4 MPPTs | Hybrid inverter (HV)
DOWNLOAD PDF >>
Plug & Play connectors
Fanless cooling for quiet operation
EHB Series is a single-phase hybrid inverter specially designed to meet the increasing energy storage needs from the residential segment. It is the ultimate integrated multi-function system, follows a Plug & Play design and has an external communication connector, making the installation process quick and convenient. Supporting up to 50A battery charge/discharge current, EHB can easily supply power to critical loads when the grid is compromised. It is AFCI-ready and can support rapid shutdown function. All these outstanding features make this inverter a perfect match for application in South African households.
<10 ms UPS-level Switching
Smart home integration with multi-protocol communications
AFCI ready & Rapid shutdown
IP65 ingress protection
Plug & Play connectors
Fanless cooling for quiet operation
Friendly & Thoughtful Design
EHB Series removes all the complexities of the installation process with its well-designed integrated AC/DC breaker, Plug & Play connectors, external communication connector etc. This makes the installation much more convenient, saving not only costs but also time and space.
Plug & Play connectors
Fanless cooling for quiet operation
Flexible & Adaptable Applications
Featuring 4 MPPTs, the EHB 5-10kW Series is the perfect solution to feed solar power to large residential properties, offering you more choices and maximizing total solar generation. The power supply ability in backup mode supports large loads for critical operations.
4 MPPTs – higher yields
Strong backup power supply
OVERVIEW
Model
GW5000-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW6500-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
6500
Back-up Nominal Apparent Power (VA)
6500
Model
GW8600-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
8600
Back-up Nominal Apparent Power (VA)
8600
Model
GW0010-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
10000
Back-up Nominal Apparent Power (VA)
10000
