ES Uniq Series
3-12kW │Single Phase│1/2 MPPTs│Hybrid Inverter (LV)
DOWNLOAD PDF >>
20A
UPS

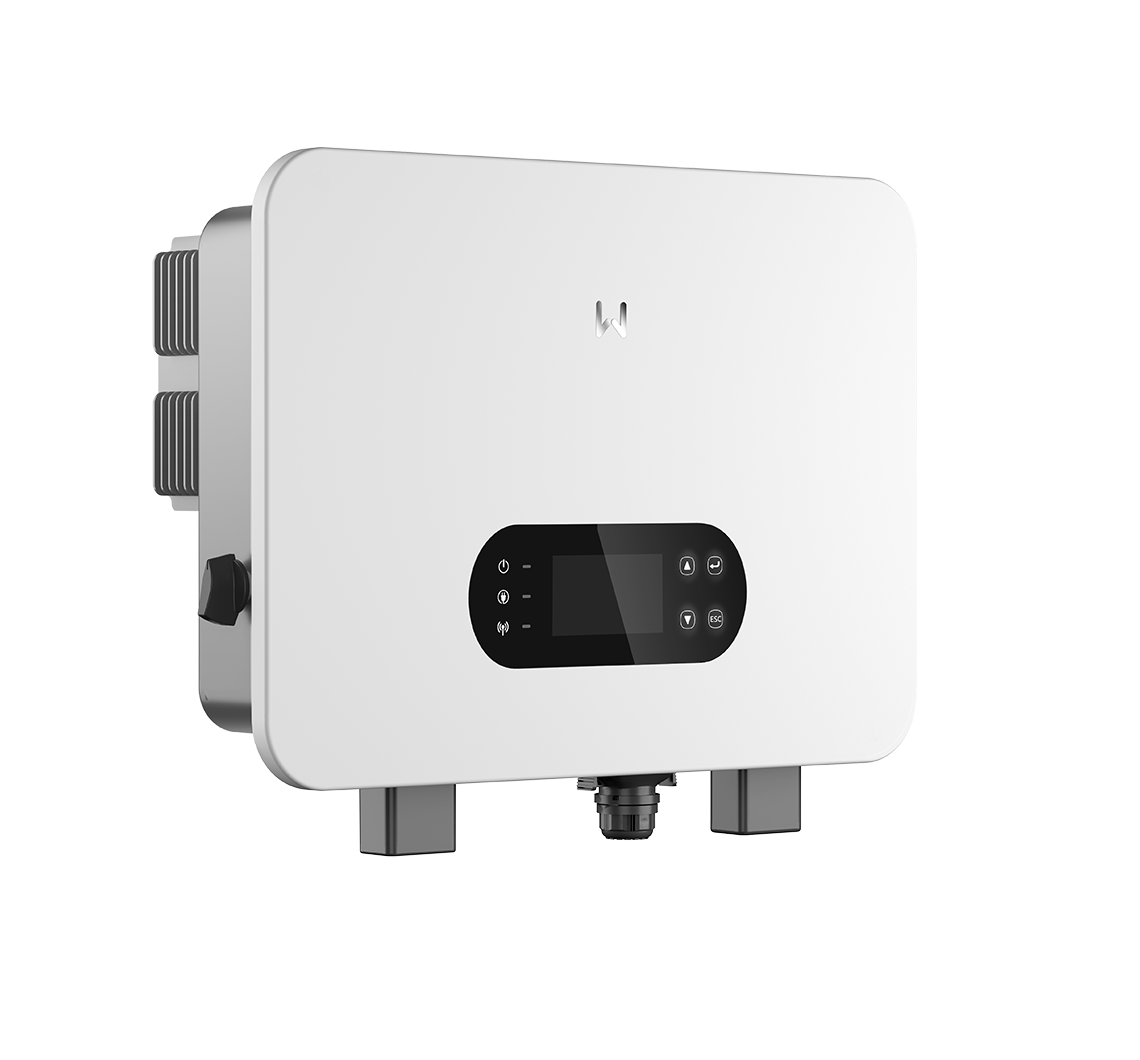

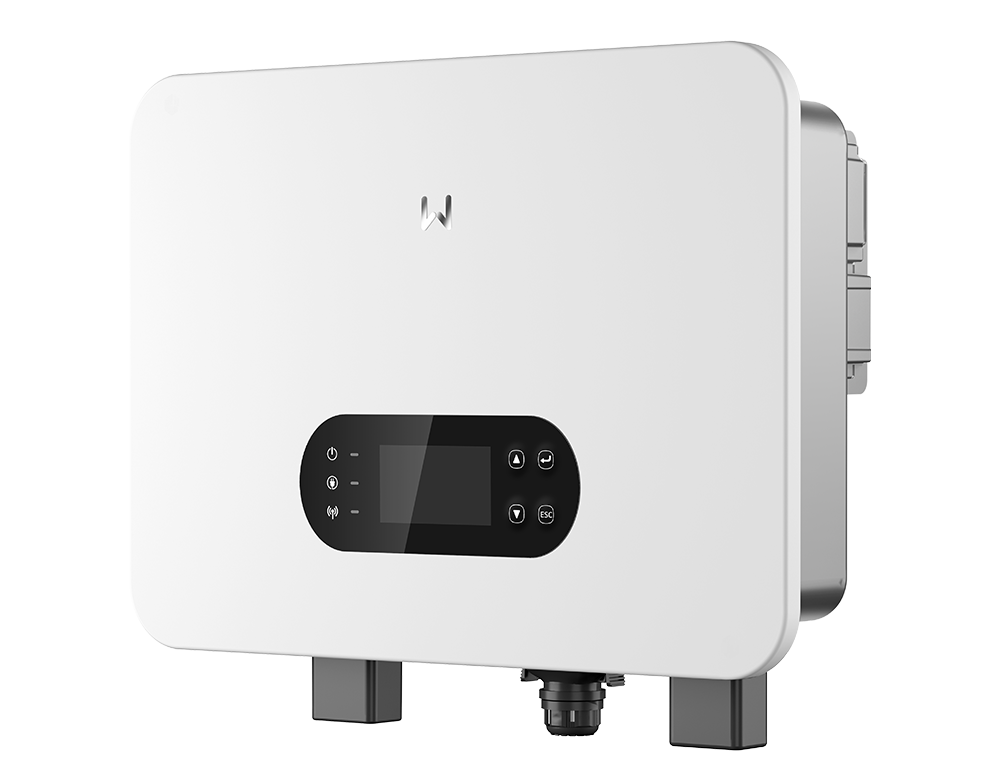

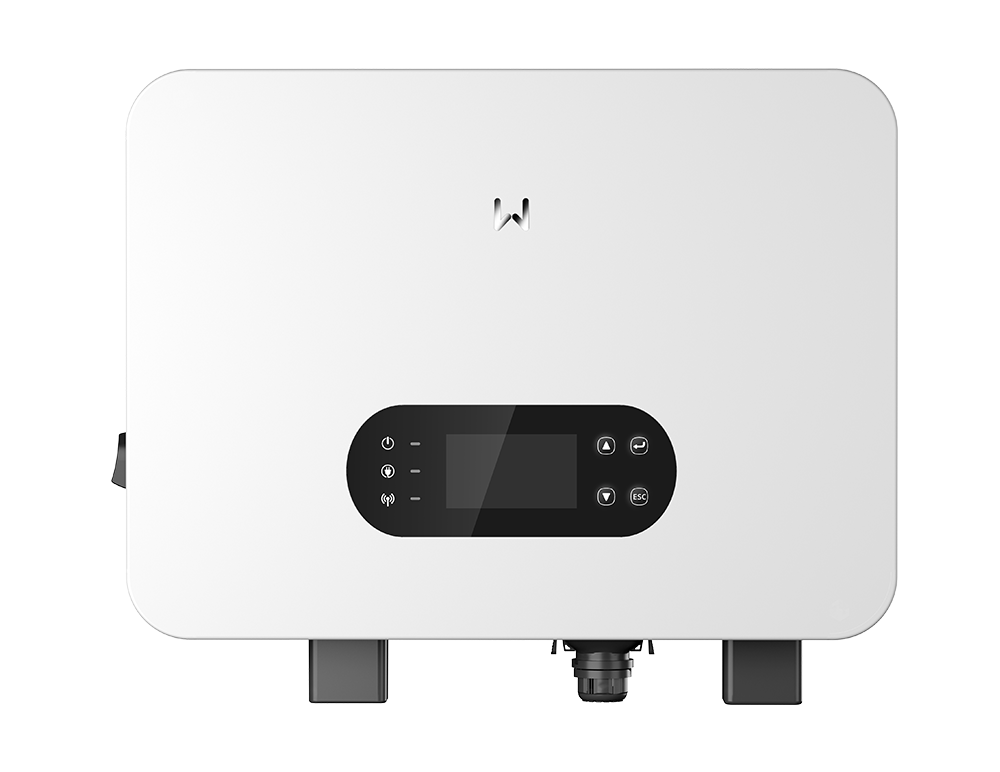

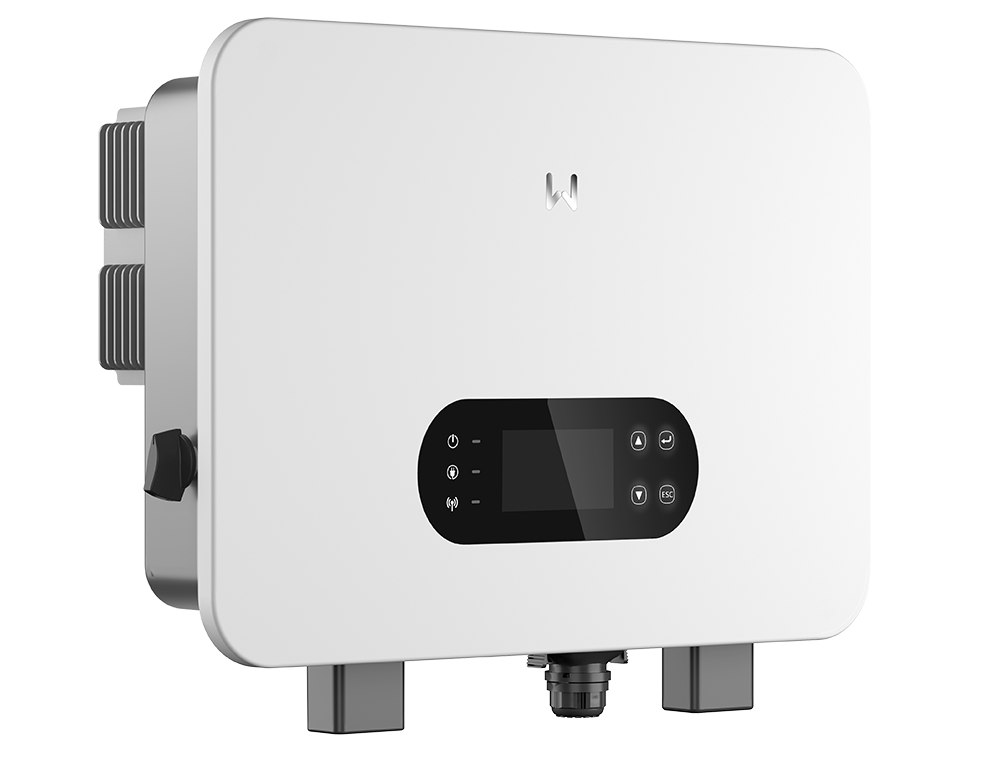

GoodWe's ES Uniq Series inverter, available in 3-12kW capacities, are specifically designed for residential PV installations. It offers flexible compatibility with both on-grid and off-grid systems and support parallel connection of up to 6 inverters for easy system expansion. The ES Uniq inverters feature a user-friendly touch-screen LCD display for intuitive operation and monitoring, and can be combined with a range of battery capacities and brands, including GoodWe's Lynx A and Lynx U batteries.
3-in-1 Port: generator & smart loads & on-grid inverter
Micro-grid operation with PV inverter
.png)
Seamless switching to backup < 4ms
AI-driven AFC
20A
UPS
Superb Safety & Reliability
Featuring optional Arc Fault Circuit Interrupter (AFCI) technology, ES Uniq detects and mitigates potential fire hazards caused by arc faults, ensuring peace of mind. Additionally, boasting an IP66 ingress protection rating, these inverters are safeguarded against dust and water ingress, making them suitable for various environmental conditions, and ensuring consistent performance and longevity.
AI-driven AFCI
IP66 ingress protection
Versatile Power Control with Microgrid Capability
The ES Uniq inverter supports flexible energy management with its 3-in-1 port, enabling seamless integration of a generator, backup loads, and smart loads through a single connection. Additionally, it supports micro-grid operation in coordination with a PV inverter, ensuring stable and autonomous power supply even in off-grid or weak grid scenarios.
3-in-1 Port: generator & smart loads & on-grid inverter
Micro-grid operation with PV inverter
OVERVIEW
Model
GW3000-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
70/70
Max. Input Current per MPPT (A)
20
Max. Apparent Power Output to Utility Grid (VA)
3300
Back-up Nominal Apparent Power (VA)
3000
Model
GW3600-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
90/90
Max. Input Current per MPPT (A)
20
Max. Apparent Power Output to Utility Grid (VA)
3960
Back-up Nominal Apparent Power (VA)
3600
Model
GW5000-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
120/120
Max. Input Current per MPPT (A)
20
Max. Apparent Power Output to Utility Grid (VA)
5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW6000-ES-C10
Battery Voltage Range (V)
40 ~ 60
Max. Continuous Charging / Discharging Current (A)
140/140
Max. Input Current per MPPT (A)
20
Max. Apparent Power Output to Utility Grid (VA)
6600
Back-up Nominal Apparent Power (VA)
6000
Model
GW8000-ES-C10
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current (A)
160/160
Max. Input Current per MPPT (A)
32/16
Max. Apparent Power Output to Utility Grid (VA)
8800
Back-up Nominal Apparent Power (VA)
8000
Model
GW10K-ES-C10
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current (A)
200/200
Max. Input Current per MPPT (A)
32/32
Max. Apparent Power Output to Utility Grid (VA)
11000
Back-up Nominal Apparent Power (VA)
10000
Model
GW12K-ES-C10
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current (A)
240/240
Max. Input Current per MPPT (A)
32/32
Max. Apparent Power Output to Utility Grid (VA)
13200
Back-up Nominal Apparent Power (VA)
12000
