Peak Shaving
16A
The ET G2 Series is the latest iteration of the ET Series and has been specially designed to accommodate households' increasing demand for electricity consumption while delivering additional benefits that cater to flexible residential needs.

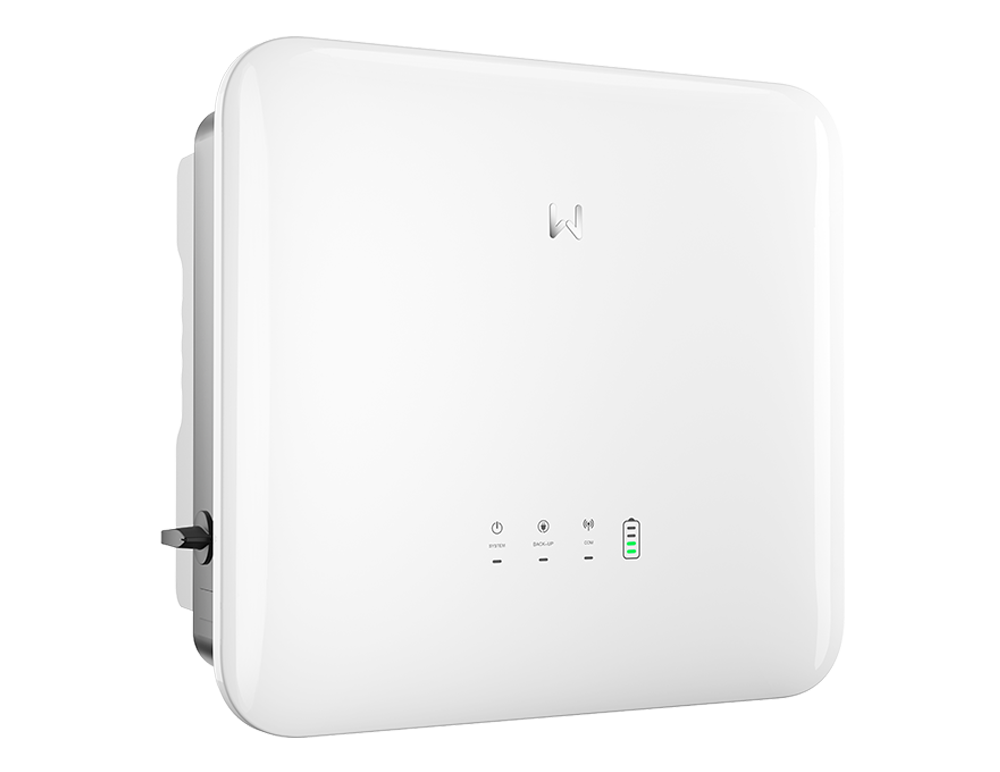

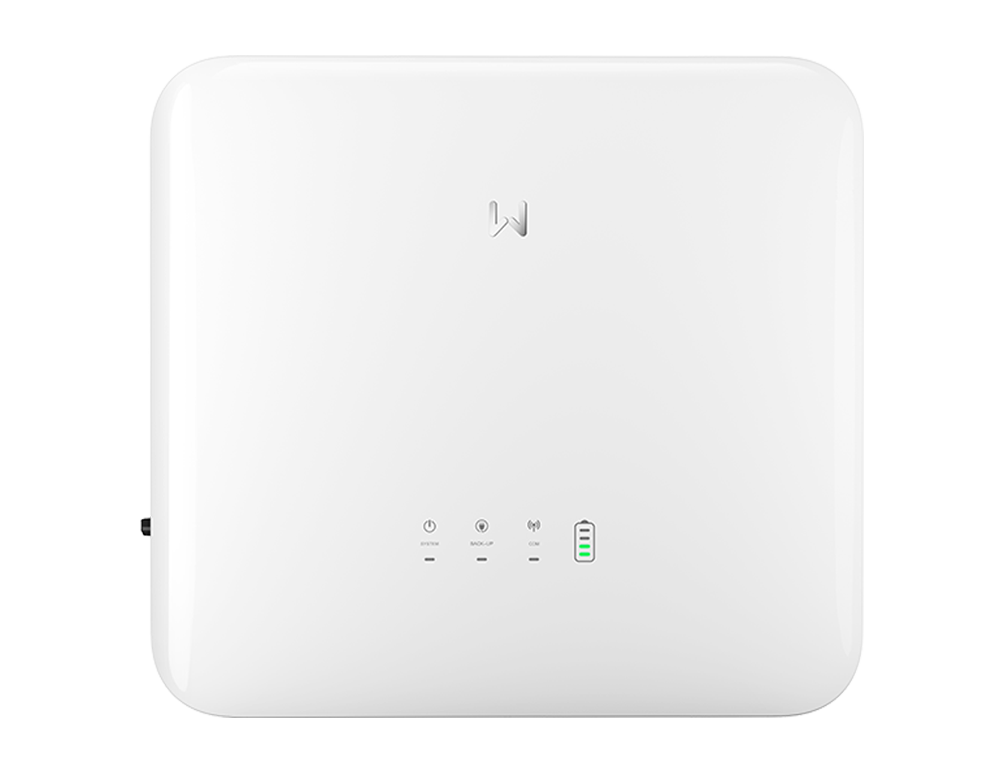

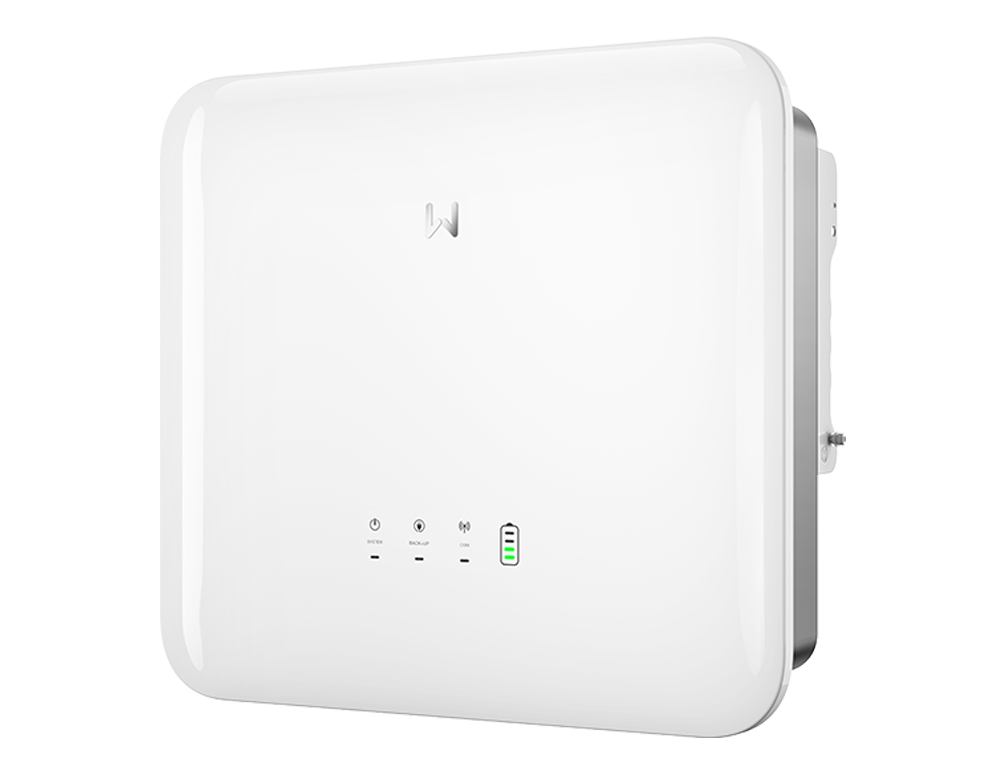

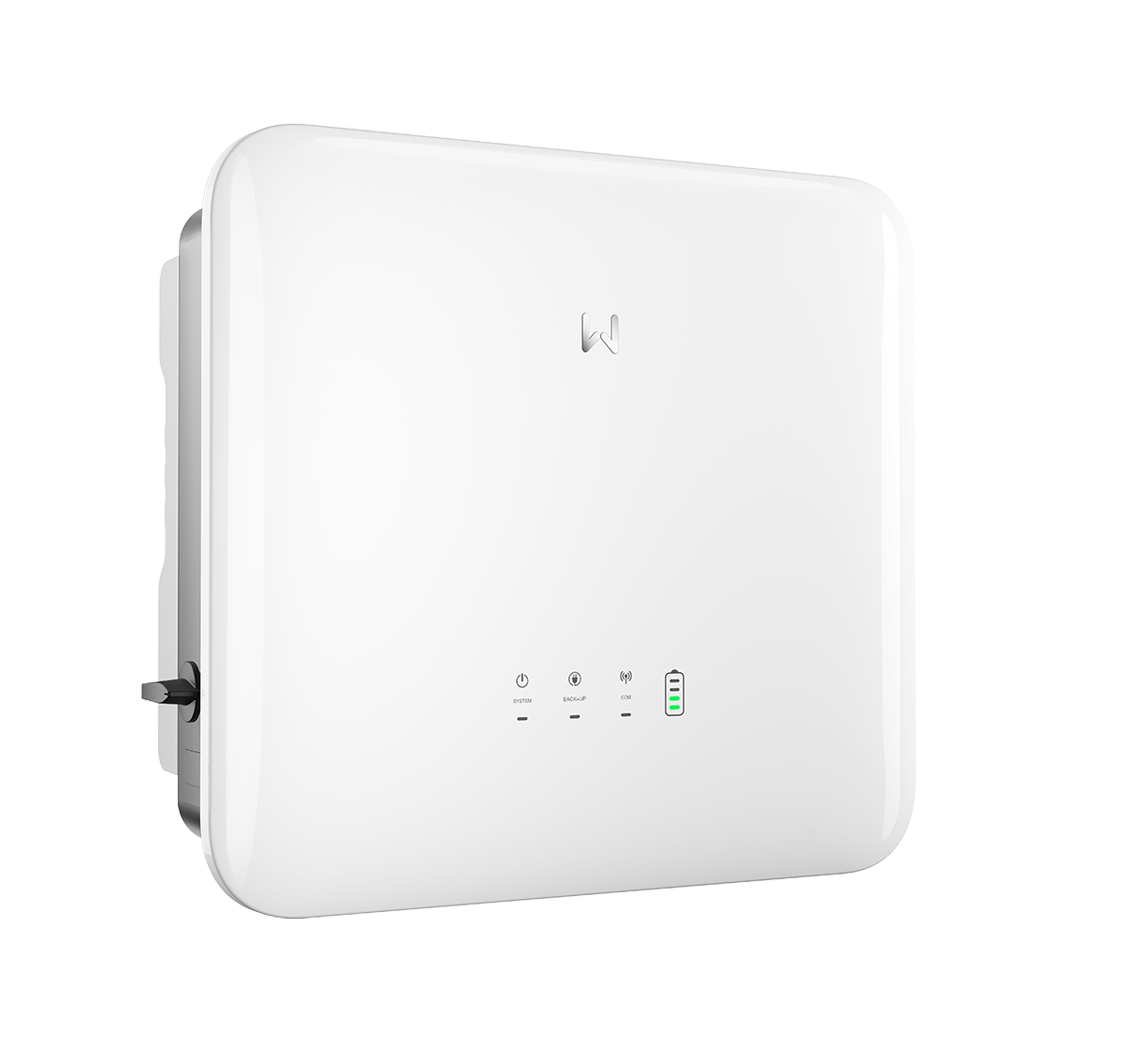

This inverter features an elegant and sleek design that can harmonize beautifully with the house's aesthetic. With the addition of 12kW and 15kW higher power capacities, the ET G2 is now equipped to deliver even more powerful generation, allowing for optimal energy harvesting. It supports parallel connections with up to 6 units, ideal for expanding energy needs.
Integrated dry contact for external loads
AI-driven AFCI 3.0
Unbalanced output up to 150%
Fast load response
Peak Shaving
16A
Superb Safety & Reliability
Type II surge protection on both DC and AC sides is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With integrated Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
Type II SPD on DC & AC sides
AI-driven AFCI 3.0
High Generation and Optimized Consumption
The ET G2 Series has been improved for compatibility with high-power modules, with a maximum of 16A input current per string. The 200% PV input oversizing and 98.2% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
160%
Up to 160% PV input oversizing
16A
Max. 16A DC input current per string
98.2%
98.2% max. efficiency
OVERVIEW
Model
GW6000-ET-20
Battery Voltage Range (V)
150 ~ 720
Max. Continuous Charging Current (A)
30
Max. Continuous Discharging Current (A)
30
Max. Apparent Power Output to Utility Grid (VA)
6000
Max. Input Current per MPPT (A)
16
Model
GW8000-ET-20
Battery Voltage Range (V)
150 ~ 720
Max. Continuous Charging Current (A)
30
Max. Continuous Discharging Current (A)
30
Max. Apparent Power Output to Utility Grid (VA)
8000
Max. Input Current per MPPT (A)
16
Model
GW10K-ET-20
Battery Voltage Range (V)
150 ~ 720
Max. Continuous Charging Current (A)
40
Max. Continuous Discharging Current (A)
40
Max. Apparent Power Output to Utility Grid (VA)
10000
Max. Input Current per MPPT (A)
16
Model
GW12K-ET-20
Battery Voltage Range (V)
150 ~ 720
Max. Continuous Charging Current (A)
40
Max. Continuous Discharging Current (A)
40
Max. Apparent Power Output to Utility Grid (VA)
12000
Max. Input Current per MPPT (A)
16
Model
GW15K-ET-20
Battery Voltage Range (V)
150 ~ 720
Max. Continuous Charging Current (A)
40
Max. Continuous Discharging Current (A)
40
Max. Apparent Power Output to Utility Grid (VA)
15000
Max. Input Current per MPPT (A)
16
