Lynx Home S Series
(North America excluded) 7.7-20.5 kWh | High voltage battery
DOWNLOAD PDF >>
Rapid charge
IP65

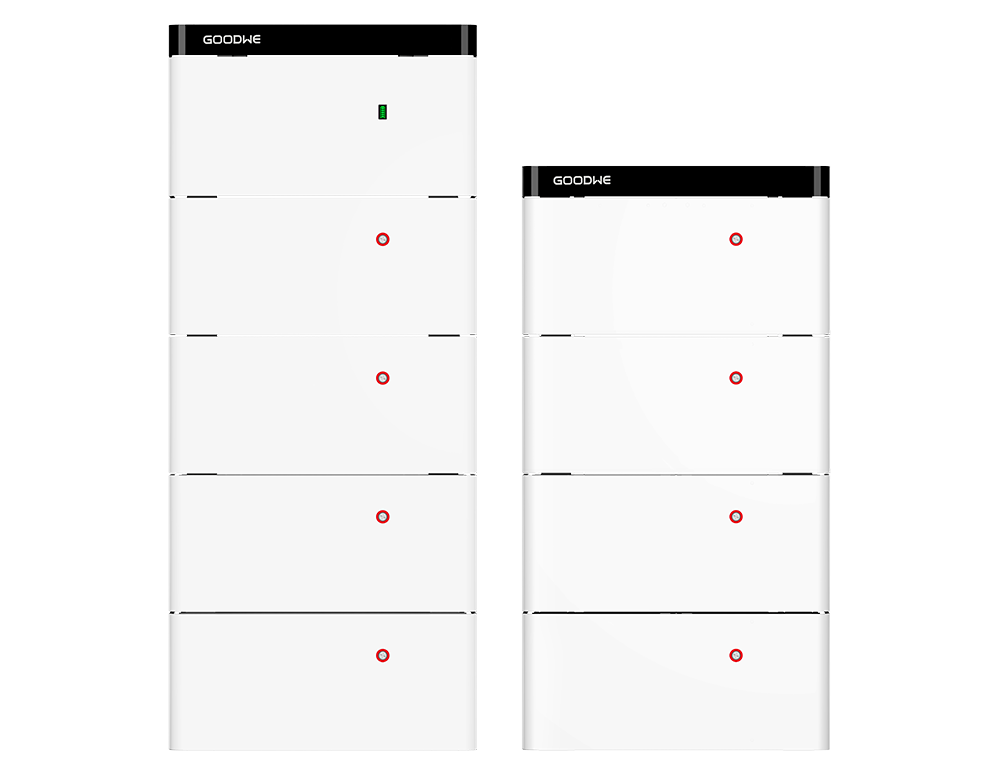

GoodWe’s Lynx Home S Series is a high voltage battery that offers multiple energy storage options through an expandable modular design (3-8 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance and supplying robust power for your life.
Ultra rapid charge
Auto under-voltage reboot
Remote diagnosis & upgrade
IP65 protection level
Rapid charge
IP65
Charge your battery within one hour
When Lynx Home S Series batteries are compatible with inverters that allows 50A max. charging current, the whole system can be fully charged within only one hour.
Easy to install and maintain
The GoodWe Lynx Home S Series is especially designed with IP65 for more flexible and easier installation indoor or outdoor. With inbuilt remote diagnosis & upgrade and auto under-voltage reboot functions, Lynx Home S Series helps you economize on the time-consuming installations and maintenance with minimalized efforts.
Auto under-voltage reboot
Remote diagnosis & upgrade
Wall-/floor-mounted Installation
OVERVIEW
Model
LX S7.5-H
Usable Energy (kWh)
6.91
Nominal Voltage (V)
153.6
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
Model
LX S10-H
Usable Energy (kWh)
9.22
Nominal Voltage (V)
204.8
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
Model
LX S13-H
Usable Energy (kWh)
11.52
Nominal Voltage (V)
256
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
Model
LX S15-H
Usable Energy (kWh)
13.83
Nominal Voltage (V)
307.2
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
Model
LX S18-H
Usable Energy (kWh)
16.13
Nominal Voltage (V)
358.4
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
Model
LX S20-H
Usable Energy (kWh)
18.43
Nominal Voltage (V)
409.6
Max. Continuous Charging/Discharging Current (A)
50
Installation Location
Wall-Mounted / Ground-Mounted
Enclosure Type
IP65
