Plug & Play
Auto recognition

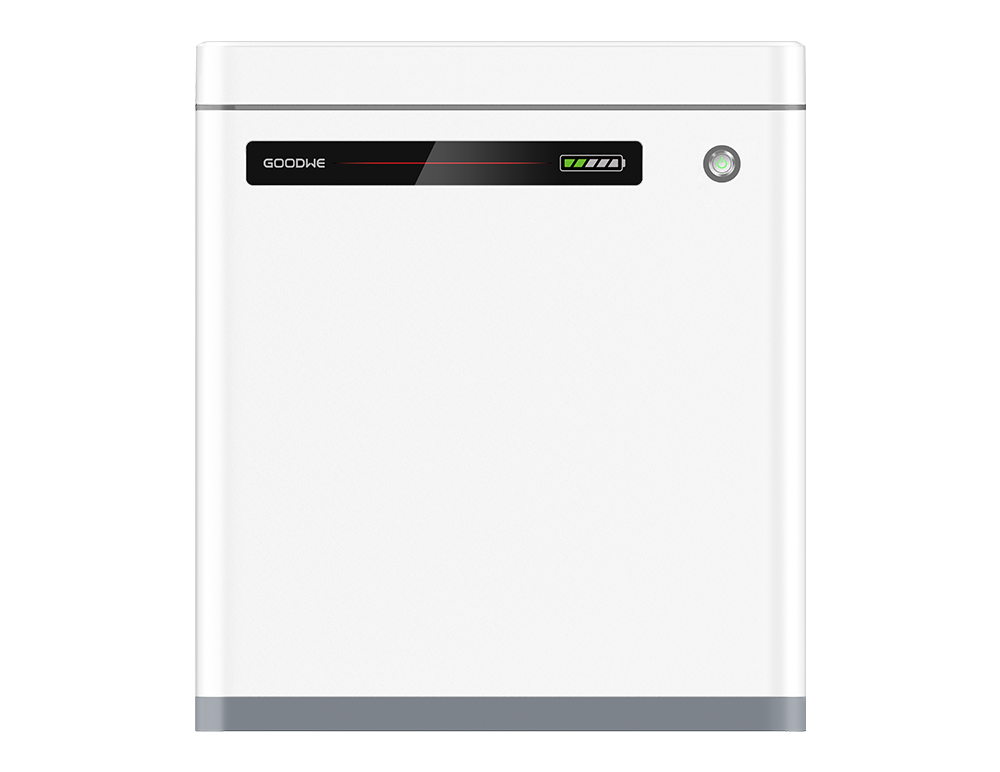

Lynx Home U Series is a low-voltage lithium battery specially designed for residential applications with superior performance. Compatible with GoodWe ES/EM/SBP inverters, Lynx Home U Series comes with GoodWe one-stop-shop solution saving you considerable time and effort. It can be used flexibly for self-consumption and backup applications with a wide capacity range scalable from 5.4 – 32.4 kWh. Each battery pack is a standalone unit with an integrated Battery Management System (BMS), eliminating the need for a Power Control Unit (PCU). The installation and commissioning are easier and faster than ever with a simple Plug and Play wiring and module auto recognition during system setup. Meet this highly efficient solution for storing your solar power and use it whenever needed.
Reliable LFP technology with high cycle stability
Remote diagnosis & update
Auto reboot after undervoltage
IP65 protection for outdoor installation safety
Plug & Play
Auto recognition
Friendly & Thoughtful Design
The stackable self-detecting modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
Auto-recognition modules
Plug & Play wiring
Flexible & Adaptable Applications
Lynx Home U Series is compatible with GoodWe ES/EM/SBP inverters, allowing for a more effortless energy storage solution construction. With its wide capacity range scalable from 5.4 kWh to 32.4 kWh, Lynx Home U Series can be set to adapt to the flexible needs whenever you need.
5.4 – 32.4 kWh wide capacity range
Compatible with GoodWe ES/EM/SBP inverters
Compatible with single-phase hybrid and retrofit inverters
OVERVIEW
Model
LX U5.4-20
Usable Energy (kWh)
5.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
50 / 50
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
2*LX U5.4-20
Usable Energy (kWh)
10.8
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
3*LX U5.4-20
Usable Energy (kWh)
16.2
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
4*LX U5.4-20
Usable Energy (kWh)
21.6
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
5*LX U5.4-20
Usable Energy (kWh)
27.0
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
6*LX U5.4-20
Usable Energy (kWh)
32.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
