<30dB
20A

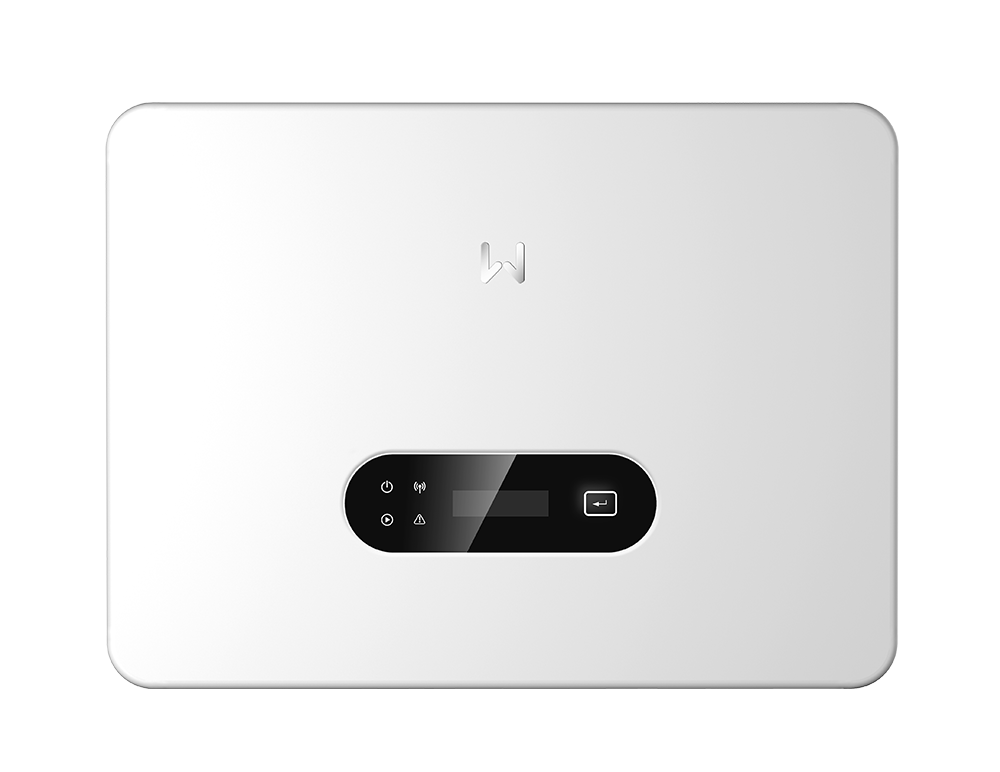

As the fourth generation of the proven single-phase, 3MPPT residential inverter, the MS G4 series inverter comes with upgraded performance, reliability, functionality and safety, providing homeowners a more powerful and flexible solution for solar needs.
20A per string & 200% PV oversizing
AI-driven AFCI 3.0 for safety
Lightweight design for easy installation
Easy paralleling via GoodWe smart dongle Ezlink3000
<30dB
20A
Superb Safety & Reliability
GoodWe's MS G4 Series features a built-in rapid shutdown transmitter, enhancing system integration and safety. With optional AI-driven Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
Built-in rapid shutdown transmitter
Type II SPD on both AC and DC sides
AI-driven AFCI 3.0 for safety
Flexible & Adaptable Applications
The MS G4 Series inverter supports mixed parallel connection with GoodWe DNS G4 inverters when paired with the GoodWe smart dongle EzLink3000. This enables flexible and efficient system expansion while reducing investment costs.
Flexible paralleling with GoodWe DNS G4 inverter
Easy paralleling via GoodWe smart dongle Ezlink3000
OVERVIEW
Model
GW7.5K-MS-G40
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
16
Nominal Output Voltage (V) :
220 / 230 / 240, L / N / PE
Model
GW8.5K-MS-G40
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
16
Nominal Output Voltage (V) :
220 / 230 / 240, L / N / PE
Model
GW10K-MS-G40
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
20
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
16
Nominal Output Voltage (V) :
220 / 230 / 240, L / N / PE
Model
GW7.5K-MS-G41
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
20
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
16
Nominal Output Voltage (V) :
220 / 230, L / N / PE
Model
GW8K-MS-G40
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
20
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
16
Nominal Output Voltage (V) :
220 / 230, L / N / PE
