Fanless & quiet
Elegant & compact

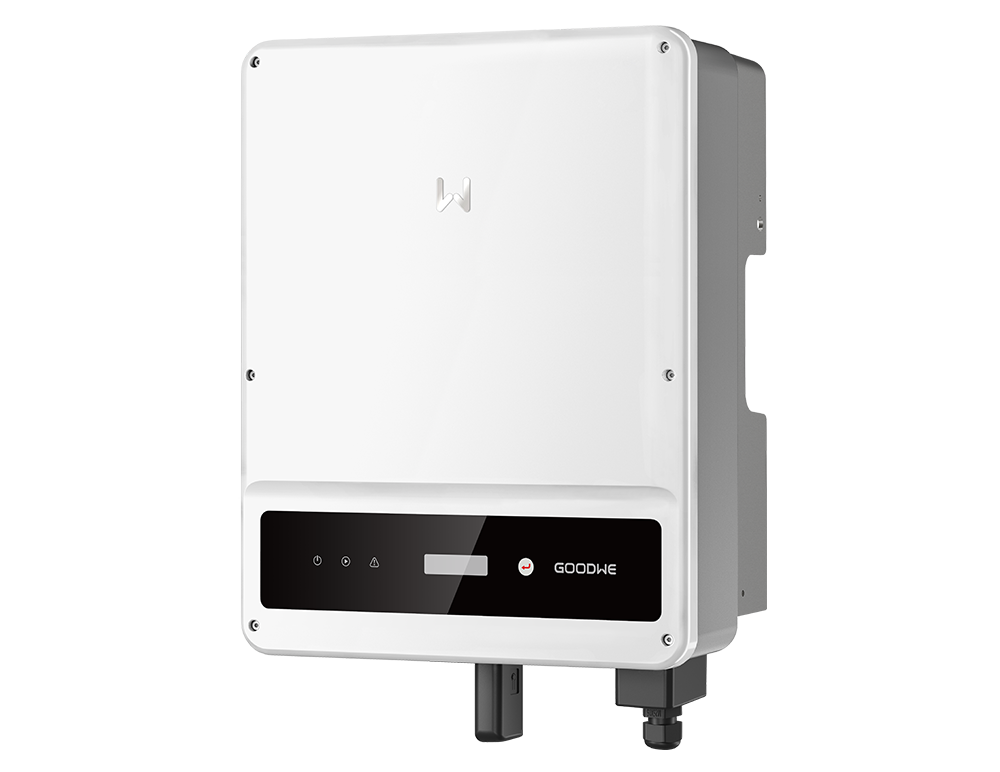

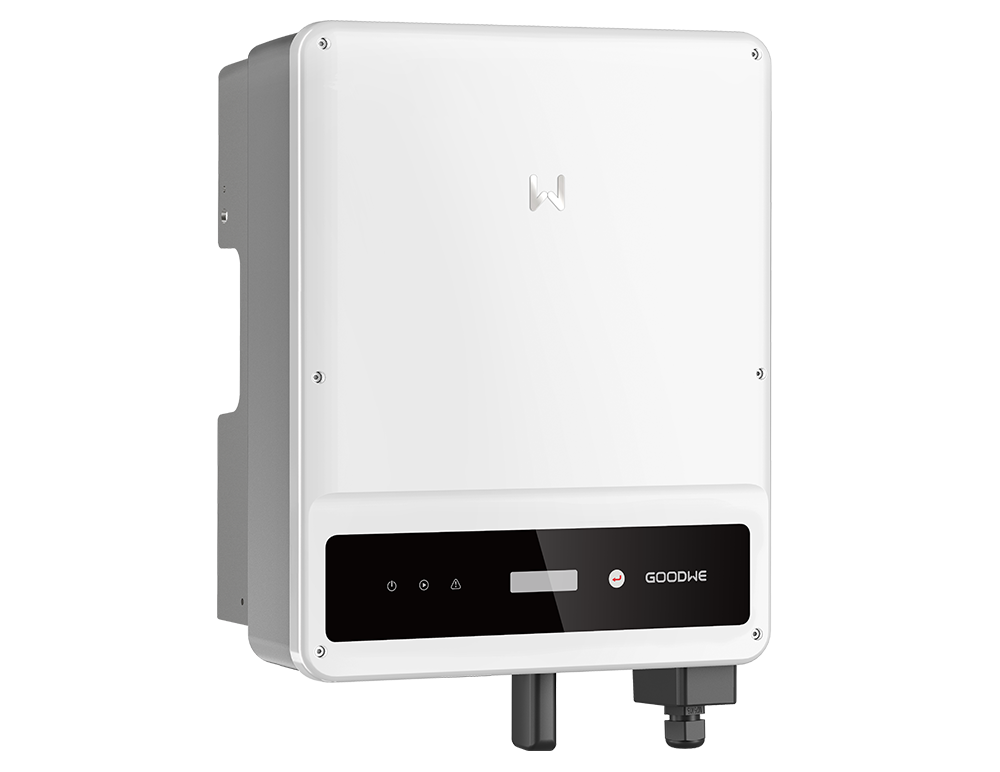

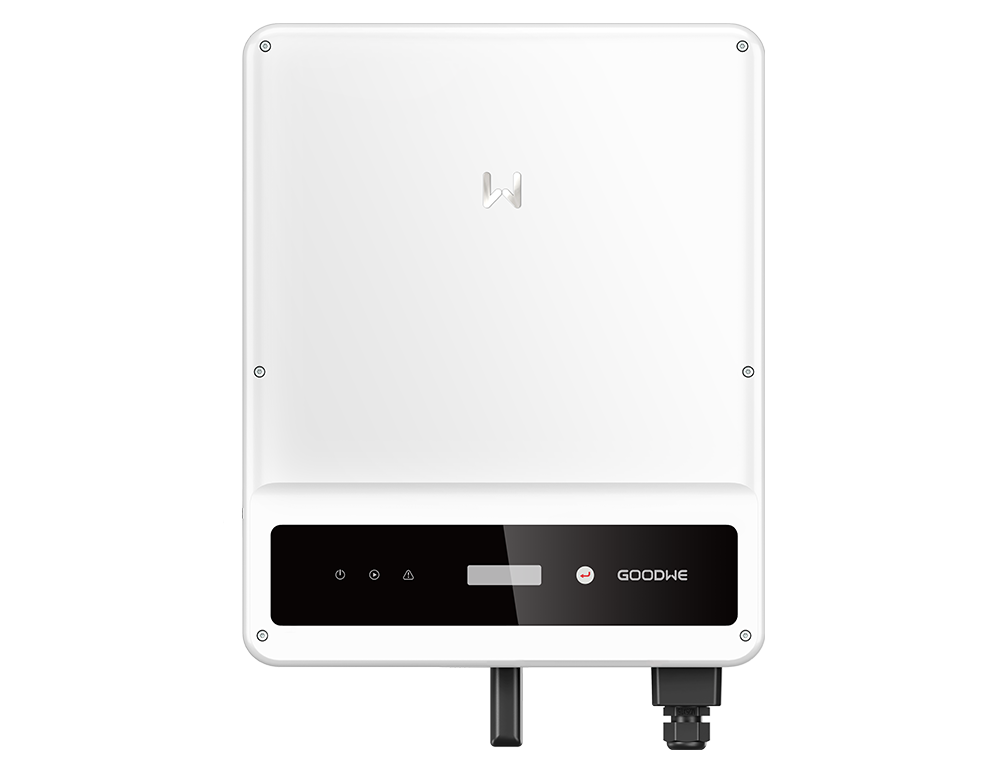

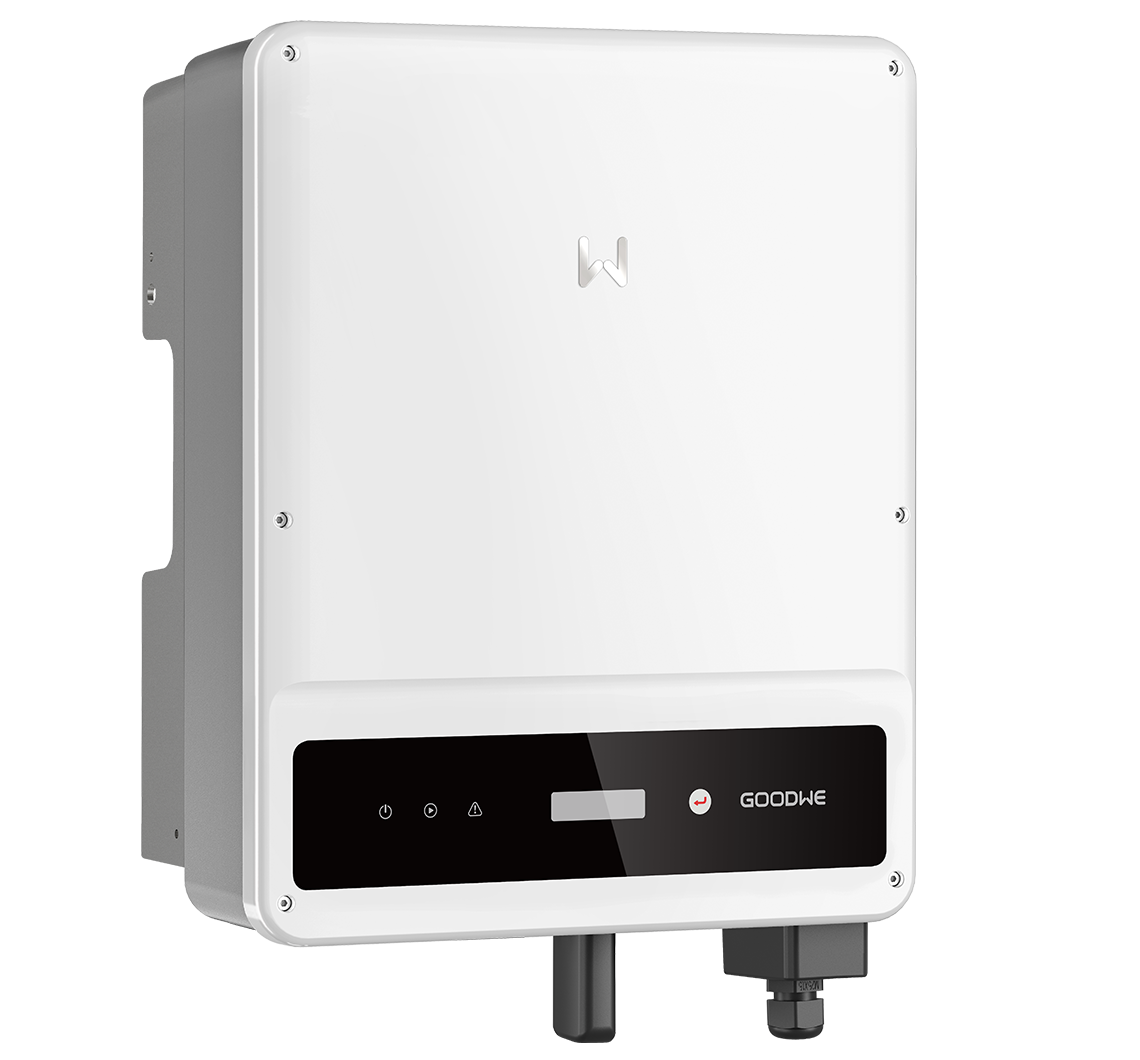

The MS Series of 5-10kW single phase inverter with 3 MPPTs for complex rooftops is a powerful and versatile solution for the expanding needs of residential usage. It is truly a champion over the competition in terms of DC oversizing, offering as much as 200% and achieving up to 110% AC overloading. With a startup voltage of only 80V, the MS series can generate electricity earlier than equivalent products. This considerably low startup voltage means that the solar system can generate power from dawn to dusk to harness as much solar energy as possible, even in very weak sunshine or poor weather conditions. The MS is compatible with bi-facial modules and its maximum current input reaches 16 A per string.
Power export limit
Load consumption monitoring
IP65 ingress protection
Quality and robust components
Fanless & quiet
Elegant & compact
Smart Control & Monitoring
Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000. Thanks to the integrated export power limit, MS Series can adapt to any power limit imposed by the local energy provider. Smart solution, smart energy.
Load consumption monitoring
Power export limit
Friendly & Thoughtful Design
MS Series is equipped with fanless natural convection cooling to realize quiet operation for users' peace of mind. The elegant and compact design is perfect for indoor installation.
Fanless cooling for quiet operation
Elegant and compact design
High Power Generation
MS Series is designed to achieve the maximum yield and present lower energy costs. The 80 V start-up voltage allows the inverter to kick in earlier during the day and presents more power generation. With the maximum efficiency, DC input oversizing and AC output overloading capabilities, the MS series is driven to its full capacity by adding extra reflections from the backside of bi-facial panels, to increase the power output under low solar radiation conditions.
97.7%
97.7% max. efficiency
3
3 MPPTs
80
80V startup voltage
110%
Up to 110% AC output overloading
200%
Up to 200% DC input oversizing
OVERVIEW
Model
GW5000-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW6000-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW7000-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW8500-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW10K-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
