Language
A4 size
Fanless & quiet

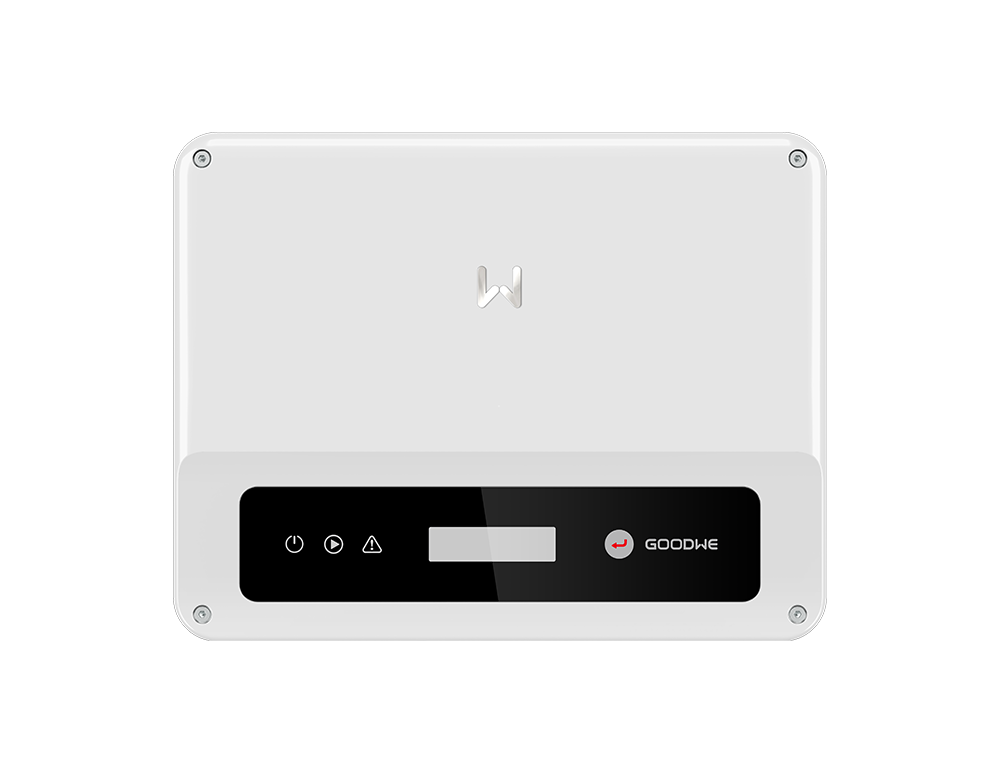

GoodWe XS is an ultra-small residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households. Its capacity ranges from 0.7 kW to 3.0 kW and its most outstanding characteristic is lightweight, which is only 5.8 kg and as well as its extremely compact size equivalent to an A4 paper, that make it particularly easy to carry & install. Remarkably, it offers 130% of DC input oversizing, and it's able to achieve maximum European efficiency of 97.2% for maximum performance. Conveniently, the communication options available on this inverter are both LAN and Wi-Fi for smart home integration.
Power export limit
IP65 ingress protection
Quality and robust components
Load consumption monitoring
A4 size
Fanless & quiet
Smart Control & Monitoring
Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000. Thanks to the integrated export power limit, XS Series can adapt to the power limit imposed by the local energy provider. Smart solution, smart energy.
Load consumption monitoring
Power export limit
Friendly & Thoughtful Design
Weighing less than 6 kg, the inverter can be easily installed, and a compact A4 size and the fanless natural convection cooling is perfect for indoor installation.
Fanless design for quiet operation
A4 size with light weight
High Power Generation
Even though the XS Series is extremely compact and tiny, it doesn’t mean standard features are sacrificed. The XS is still equipped with 130% DC oversizing capability which allows full load output during extreme weather conditions. With the capacity of 110% AC output overloading, XS Series can generate 10% additional power compared to the nominal output, increasing the overall yield. The 40 V start-up voltage allows the inverter to kick in earlier during the day and presents more power generation.
130%
Up to 130% DC input oversizing
110%
Up to 110% AC output overloading
40
40V start-up voltage
OVERVIEW
Model
GW3000-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW2500-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW2000-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW1000-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW1500-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW700-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
