Smart string protection
IP66

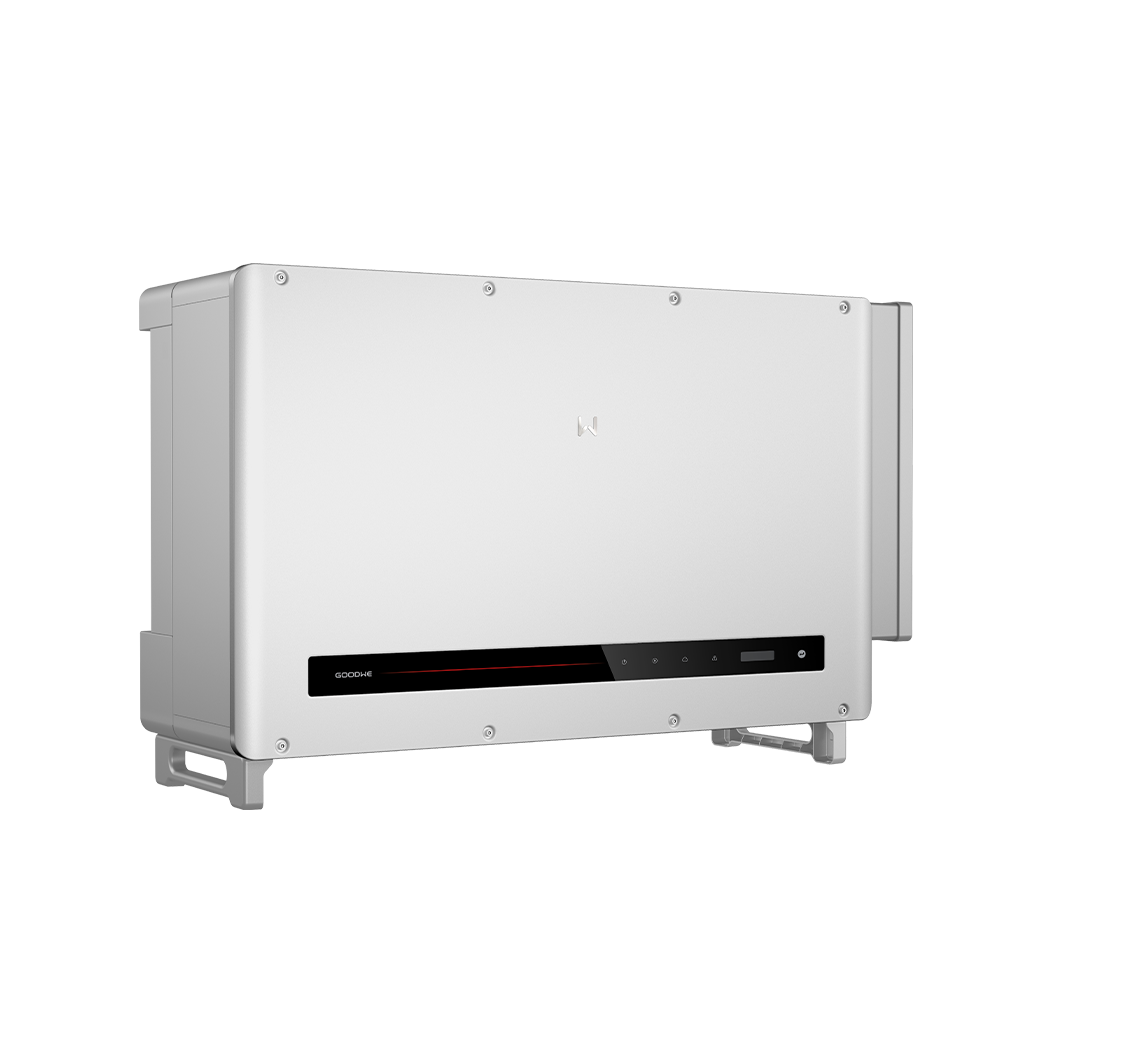

The new HT1500V Series (225/250kW) is GoodWe’s top inverter with an extensive list of features designed to reduce system and O&M costs. It is a perfect choice for the utilization of utility-scale centralized PV plants to maximize the return of investment. The HT1500V Series boasts options of 6 MPPTs and 12 MPPTs, reactive power compensation, and is compatible with bifacial 182mm/210mm modules. It features string level monitoring for intelligent detection of current issues. The series is also equipped with optional Anti-PID function and can realize 24-hour monitoring. For GW225KN-HT & GW250KN-HT, the unique mechanism of smart string protection switch is supported for the DC side protection against short circuits or reverse connections. The configuration of the HT1500V can be easily done via bluetooth, while firmware diagnosis and upgrading can be operated remotely. These outstanding sets of features were conceived to ensure the lowest levelized cost of energy (LCOE) and a utility that runs efficiently.
Anti-PID function
AC terminal ready for 300mm2 aluminum cables
String level monitoring
Reactive power compensation at night
Smart string protection
IP66
Superb safety & reliability
Featuring smart string protection switch, the inverter can detect a short circuit or reverse connection, automatically turn off the switch to stop the corresponding MPPTs, and report the fault at the same time, which ensures both safety and efficiency. HT Series also allows for string level monitoring and supports intelligent detection of voltage and current issues, guaranteeing fast troubleshooting. Type II Surge Protection Device (SPD) on both sides protects the system from electrical fire and lightning hazards in extreme environments. GoodWe not only delivers efficiency, reliability, but security as well.
Smart O&M
String level monitoring allows for complete observation of the energy system. Users can monitor each panel for smart and proactive maintenance. Meanwhile, with 24-hour monitoring, the inverter allows you to obtain real-time information on the performance, production and consumption of your solar power system. The Series also supports remote settings and updates, which massively reduces the site visit costs during the maintenance cycle.
String level monitoring
Real-time monitoring
Remote setting and update to reduce site visit costs
Higher Yields
HT Series is ideal for high-power 210mm modules by supporting up to 20 A max. input current per string and up to 60 A DC max. input current per MPPT, which makes full use of power generated and guarantees LCOE for clients.
20
Up to 20 A max. DC input current per string
Multi
Multi-MPPT design for optimizing the solar array in any location
OVERVIEW
Model
GW225K-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW250K-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW225KN-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW250KN-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
