Quiet operation
98.70%

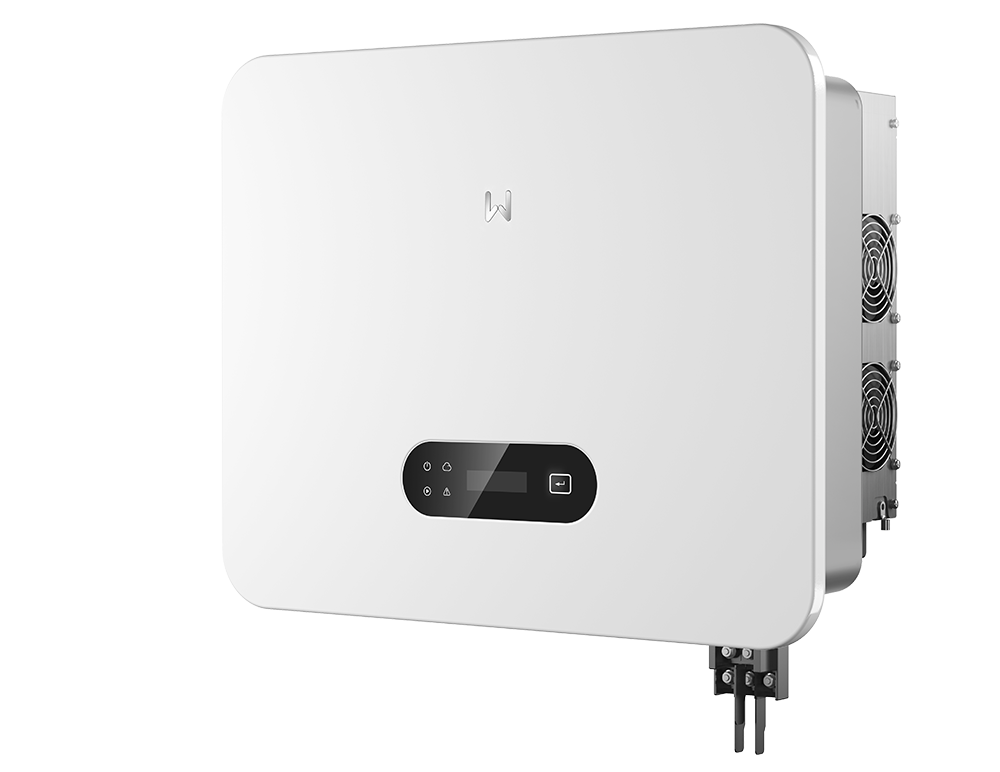

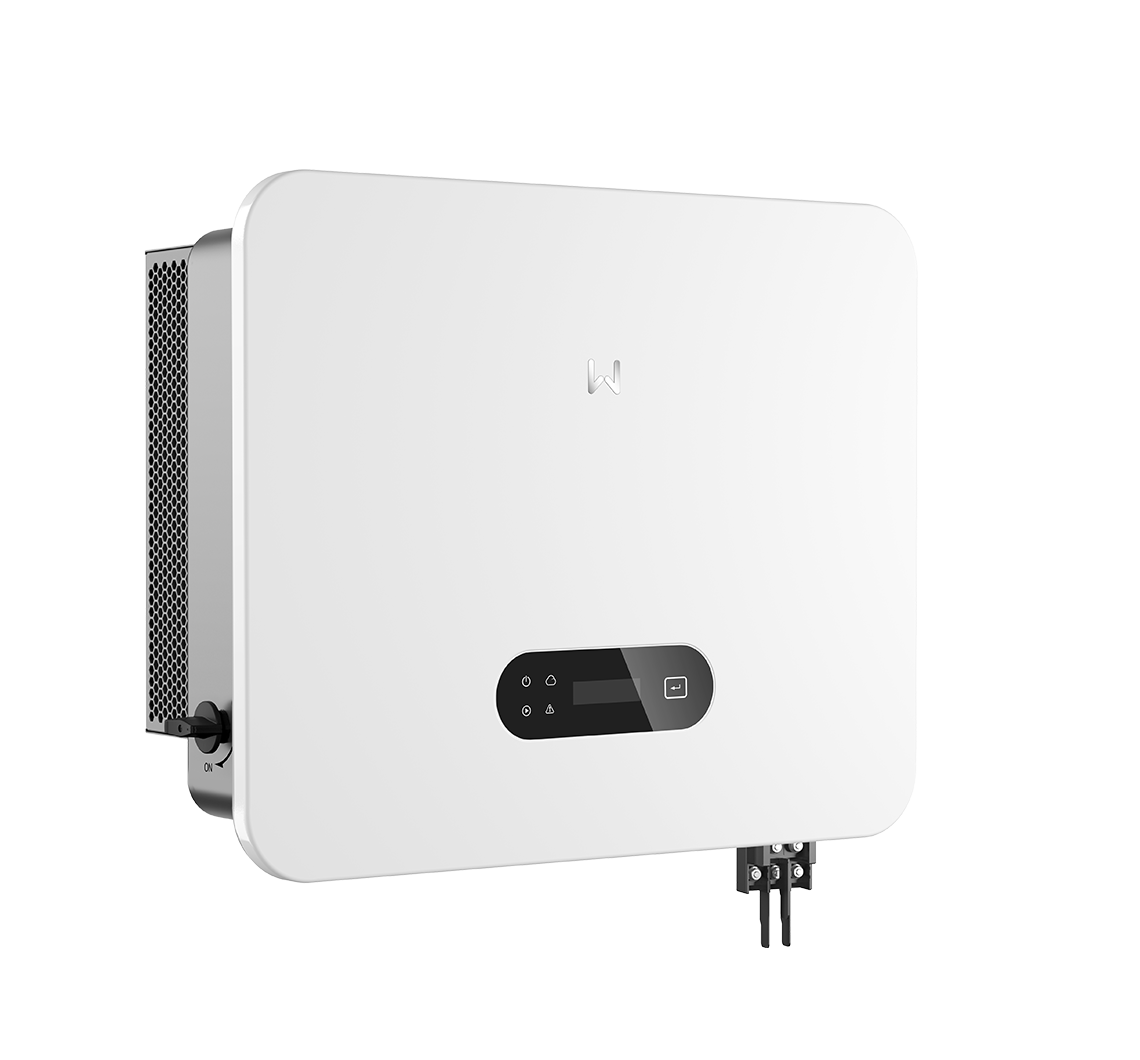

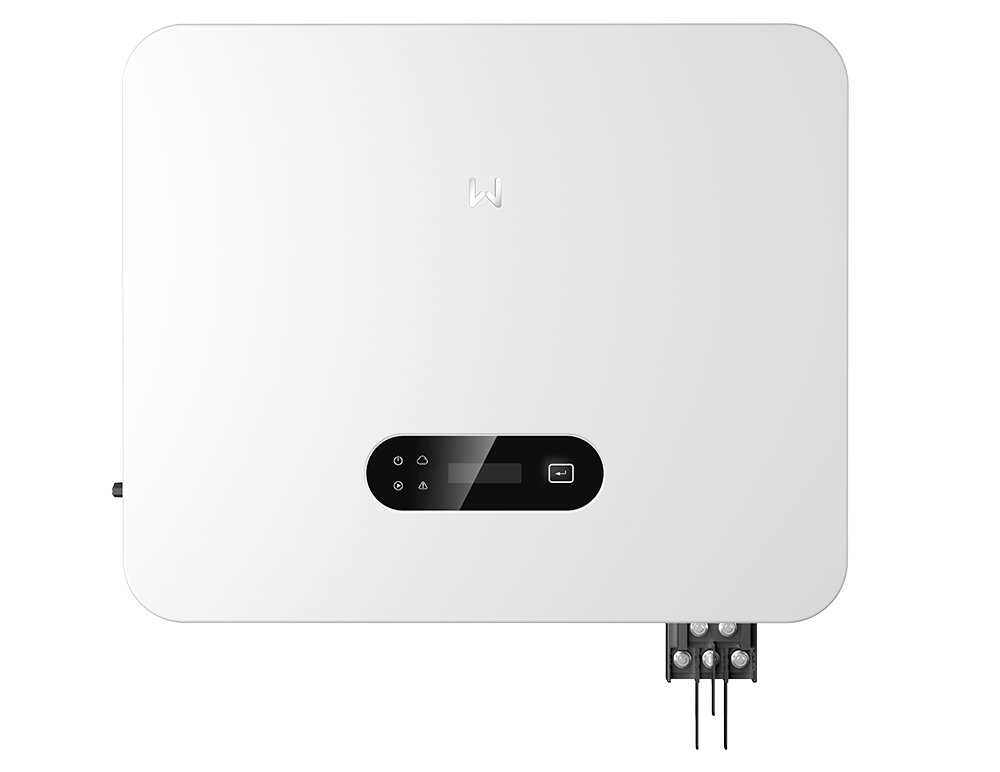

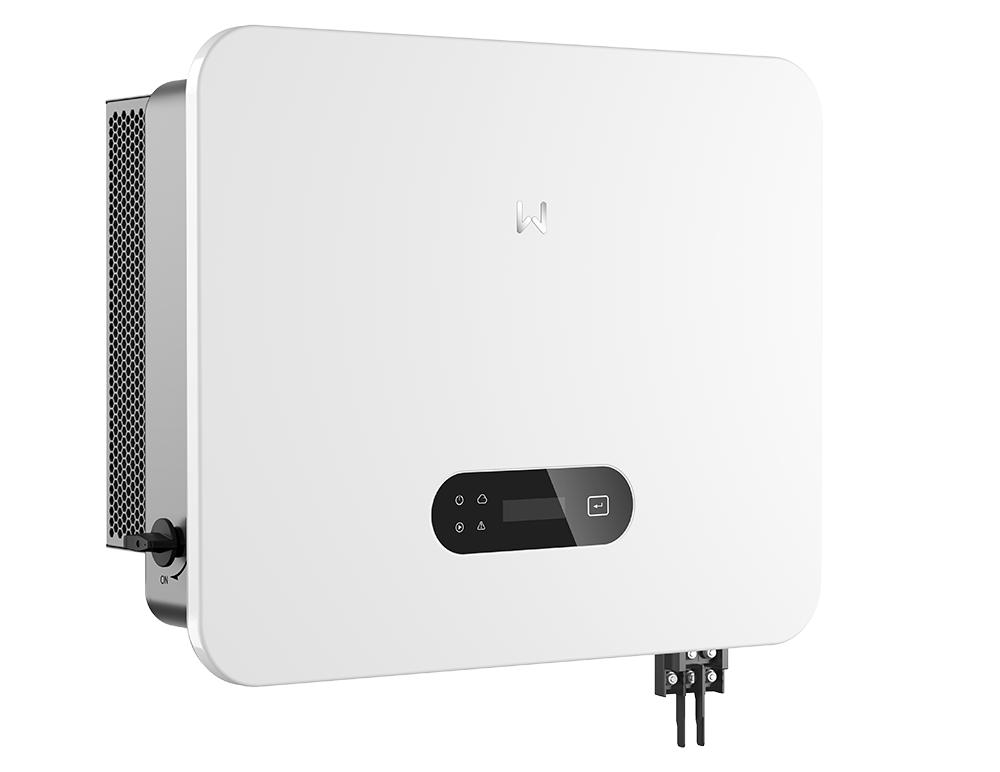

GoodWe's SDT G3 Series inverter is designed for three-phase residential and commercial applications. With a capacity range of 25kW to 40kW, it offers flexible options to meet various power requirements. Additionally, its high efficiency, smart functions and user-friendly design ensure increased ROI while delivering ultimate convenience.
Max. 21A input current per string
Mixed parallel connection with GoodWe SDT G3 series
In-built Type II SPD on AC & DC sides
Lightweight design for easy installation
Quiet operation
98.70%
Wide Compatibility
The SDT G3 Series inverter supports up to 180% PV input oversizing, maximizing energy yields for enhanced ROI. With a maximum input current of 21A per string, it accommodates high-current PV modules for greater compatibility. Additionally, its wide MPPT operating voltage range ensures optimal energy production even under low solar radiation conditions.
Max. 21A input current per string
Up to 180% PV input oversizing
Wide MPPT voltage range
Superb Safety & Reliability
Type II surge protection on both DC and AC sides is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With optional AI-driven Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
In-built Type II SPD on AC & DC sides
AI-driven AFCI
OVERVIEW
Model
GW40K-SDT-P30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
40
Number of MPP trackers/Number of Strings per MPPT:
4/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
Model
GW40K-SDT-C30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42/42/32
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
Model
GW36K-SDT-C30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42/42/32
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
Model
GW33K-SDT-C30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42/42/32
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
Model
GW30K-SDT-30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
40
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.7%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
Model
GW25K-SDT-30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
40
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.7%
Nominal Output Voltage (V) :
220/380, 230/400, 240/415, 3L/N/PE or 3L/PE
